SCAME508.16865 SCAME ENC BASE. Mec. 16A 3P+T 11h

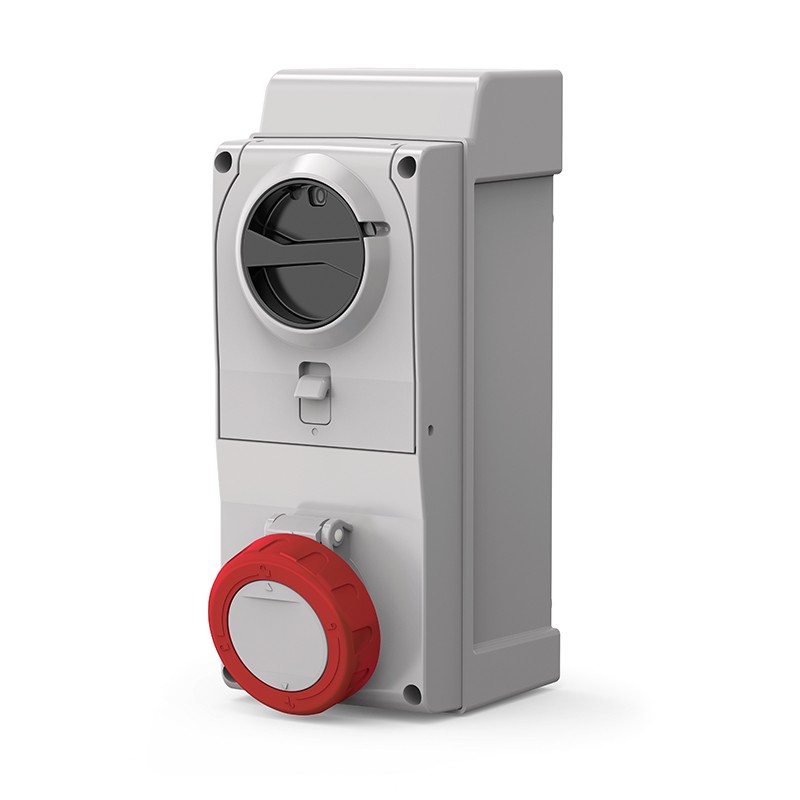

SCAME 508.16865 508.16865 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

508.16865 SCAME ENC BASE. Mec. 16A 3P+T 11h

Reference: 508.16865

Manufacturer: SCAME

Description:

ENC BASE. Mec. 16A 3P+T 11h
16A 3P+E 11h 440-460V 60Hz Screw terminals With mechanical interlock

Categories:

  • SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Commercial Series
PROXIMA Series
Synthetical description
INTERLOCKED SOCKET
Mounting version
SURFACE MOUNTING
Rated current
16A
Poles
3P+E
Hour position
11h
Rated voltage
440-460V
Working frequency
60Hz
Colour
RED
Material
THERMOPLASTIC
Protection degree
Watertight
Protection degree IP
IP66/IP67/IP69
Protection degree IK
IK10
Terminals
Screw terminals
Contact material
CuZn (brass)
Options
With mechanical interlock
Notes
WITH FUSE HOLDER
Fuse type
gG 10,3x38mm
Padlock
ø5mm
Catalogue notes
Top and bottom side cable entry
Blank side with drilling point marks

DATASHEET - PDF

Title
Size
Type
508.16865 508.16865 EN_508.16865.pdf
41 Kbytes
PDF CATALOGUE SCAME EN
