504.63872 SCAME INTERLOCKED SOCKET View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

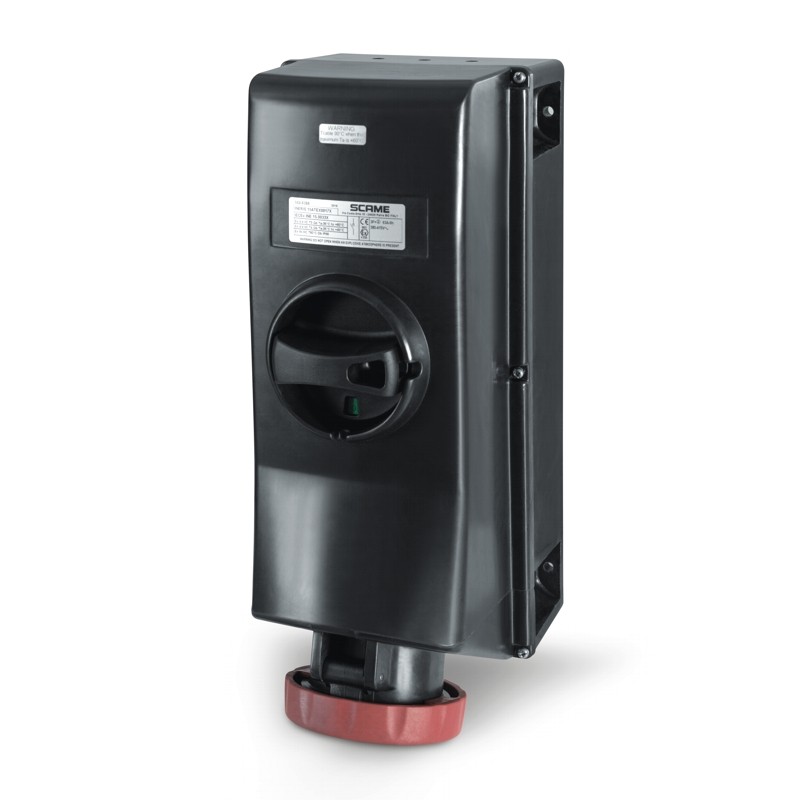

504.63872 SCAME INTERLOCKED SOCKET

504.63872

SCAME

INTERLOCKED SOCKET

ENC BASE. MEC. 63A 3P+N+T 2h IP66 >50V

More details


Industrial socket/plug applications > Explosion proof CEE socket outlet

Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

More info



Commercial series
ADVANCE-GRP[GD] Series
Synthetical description
INTERLOCKED SOCKET
Mounting version
SURFACE MOUNTING
Rated current
63A
Poles
3P+N+E
Hour position
2h
Rated voltage (range)
50-200V
Rated voltage
>50V
Working frequency
>300-500Hz
Colour
RED
Material
GRP Glass Reinforced Polyester
Protection degree
Splash proof
Protection degree IP
IP66
Protection degree IK
IK10
Terminals
Screw terminals
Contact material
CuZn (brass)
Flange
170X380MM_PAR
Cable entry
1xM40
Working temperature
-35°C/+60°C
GLOW WIRE
GW 960°C
Self-extinguishing UL94
V0
Group and categories EX
II 2GD
Options
With mechanical interlock
Padlock
ø6,3mm

Datasheet - PDF
