504.63866 SCAME INTERLOCKED SOCKET View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

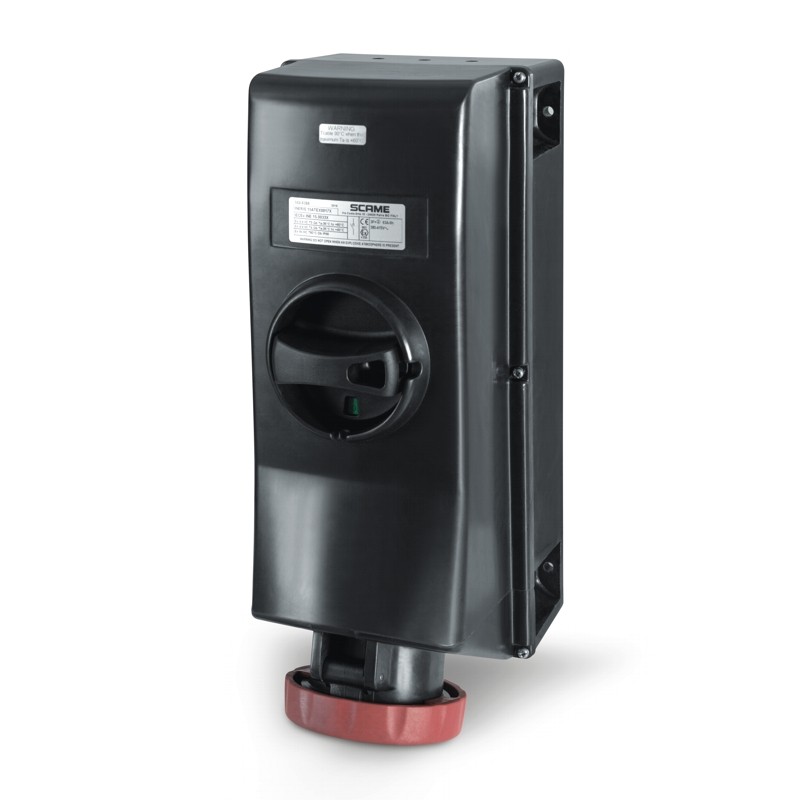

504.63866 SCAME INTERLOCKED SOCKET

504.63866

SCAME

INTERLOCKED SOCKET

BASE GRP 3P+T 63A 7H IP66 EX ZONE1/21

More details


Industrial socket/plug applications > Explosion proof CEE socket outlet

Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

Total: $991.37
Unit price: $991.37
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

More info



Commercial series
ADVANCE-GRP[GD] Series
Synthetical description
INTERLOCKED SOCKET
Mounting version
SURFACE MOUNTING
Rated current
63A
Poles
3P+E
Hour position
7h
Rated voltage (range)
400V-up
Rated voltage
480-500V
Working frequency
60Hz
50Hz
Colour
BLACK
Material
GRP Glass Reinforced Polyester
Protection degree
Splash proof
Protection degree IP
IP66
Protection degree IK
IK10
Terminals
Screw terminals
Contact material
CuZn (brass)
Flange
170X380MM_PAR
Cable entry
1xM40
Working temperature
-35°C/+60°C
GLOW WIRE
GW 960°C
Self-extinguishing UL94
V0
Group and categories EX
II 2GD
Options
With mechanical interlock
Padlock
ø6,3mm

Datasheet - PDF
