SCAME504.6379 SCAME INTERLOCKED SOCKET

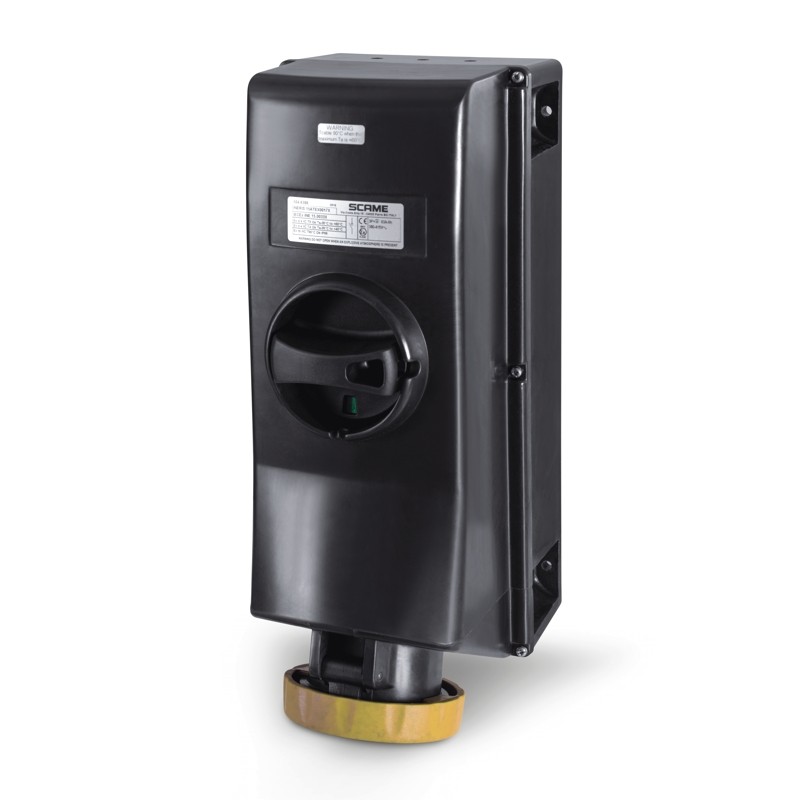

SCAME 504.6379 504.6379 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

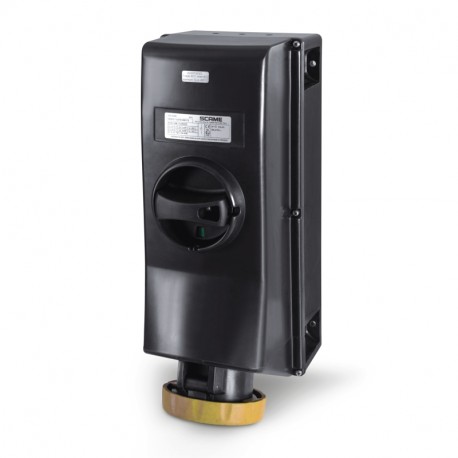

504.6379 SCAME INTERLOCKED SOCKET

Reference: 504.6379

Manufacturer: SCAME

Description:

INTERLOCKED SOCKET
ENC BASE. MEC. 63A 3P+N+T 4h IP66

Categories:

  • Industrial socket/plug applications > Explosion proof CEE socket outlet
  • SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Commercial series
ADVANCE-GRP[GD] Series
Synthetical description
INTERLOCKED SOCKET
Mounting version
SURFACE MOUNTING
Rated current
63A
Poles
3P+N+E
Hour position
4h
Rated voltage (range)
50-200V
Rated voltage
100-130V
Working frequency
60Hz
50Hz
Colour
YELLOW
Material
GRP Glass Reinforced Polyester
Protection degree
Splash proof
Protection degree IP
IP66
Protection degree IK
IK10
Terminals
Screw terminals
Contact material
CuZn (brass)
Flange
170X380MM_PAR
Cable entry
1xM40
Working temperature
-35°C/+60°C
GLOW WIRE
GW 960°C
Self-extinguishing UL94
V0
Group and categories EX
II 2GD
Options
With mechanical interlock
Padlock
ø6,3mm

DATASHEET - PDF

Title
Size
Type
504.6379 504.6379 EN_504.6379.pdf
27 Kbytes
PDF CATALOGUE SCAME EN
20 Mbytes
