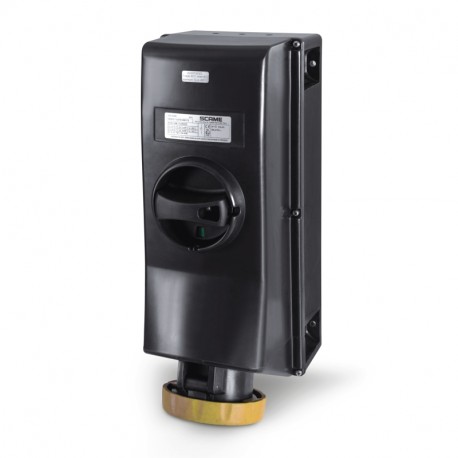

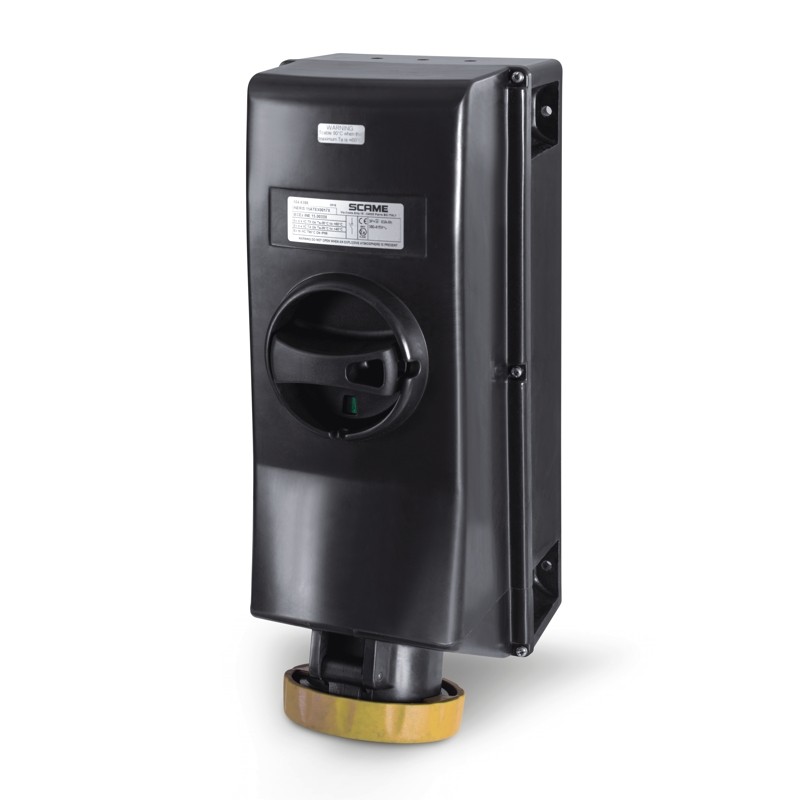

504.6372 SCAME INTERLOCKED SOCKET
504.6372
SCAME
INTERLOCKED SOCKET
ENC BASE. MEC. 63A 3P+T 4h IP66 100-130V
Industrial socket/plug applications > Explosion proof CEE socket outlet
Home > SCAME
* Brand new product in its original packaging covered by the warranties and certifications provided by SCAME
More info
▲Commercial series
ADVANCE-GRP[GD] Series
Synthetical description
INTERLOCKED SOCKET
Mounting version
SURFACE MOUNTING
Rated current
63A
Poles
3P+E
Hour position
4h
Rated voltage (range)
50-200V
Rated voltage
100-130V
Working frequency
50Hz
60Hz
Colour
YELLOW
Material
GRP Glass Reinforced Polyester
Protection degree
Splash proof
Protection degree IP
IP66
Protection degree IK
IK10
Terminals
Screw terminals
Contact material
CuZn (brass)
Flange
170X380MM_PAR
Cable entry
1xM40
Working temperature
-35°C/+60°C
GLOW WIRE
GW 960°C
Self-extinguishing UL94
V0
Group and categories EX
II 2GD
Options
With mechanical interlock
Padlock
ø6,3mm
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SCAME EN.pdf | 19 Mbytes |
|
| 504.6372 504.6372 EN_504.6372.pdf | 27 Kbytes |
|
| Download general catalog |
|
