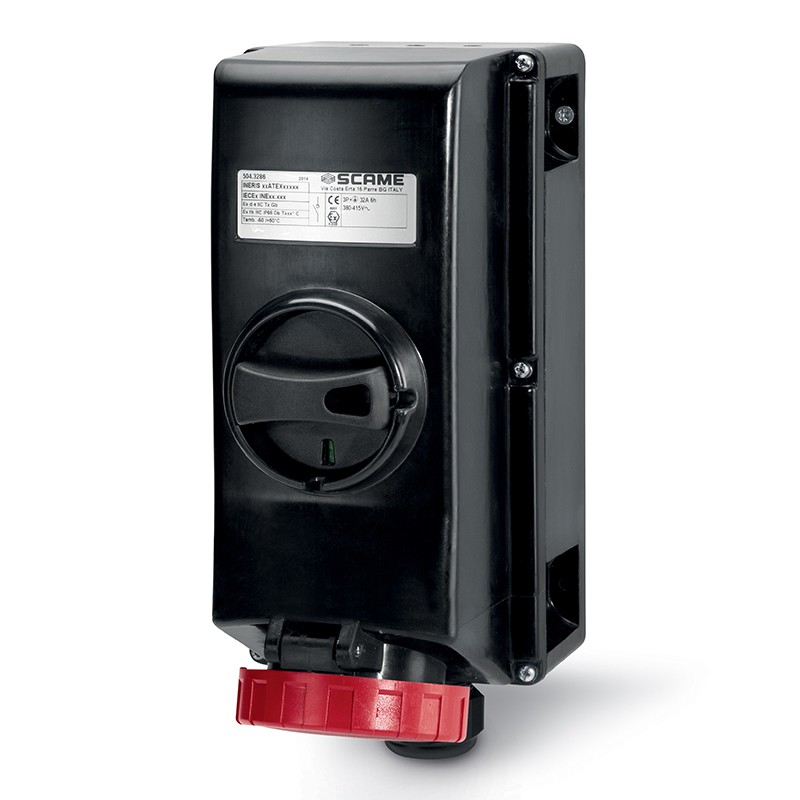

504.32877 SCAME INTERLOCKED SOCKET
504.32877
SCAME
INTERLOCKED SOCKET
ENC BASE. MEC. 32A 3P+N+T 5h IP66
Industrial socket/plug applications > Explosion proof CEE socket outlet
Home > SCAME
* Brand new product in its original packaging covered by the warranties and certifications provided by SCAME
Best sellers
▲More info
▲Commercial series
ADVANCE-GRP[GD] Series
Synthetical description
INTERLOCKED SOCKET
Mounting version
SURFACE MOUNTING
Rated current
32A
Poles
3P+N+E
Hour position
5h
Rated voltage (range)
400V-up
Rated voltage
600-690V
Working frequency
60Hz
50Hz
Colour
RED
Material
GRP Glass Reinforced Polyester
Protection degree
Splash proof
Protection degree IP
IP66
Protection degree IK
IK10
Terminals
Screw terminals
Contact material
CuZn (brass)
Flange
130X260MM_PAR
Cable entry
1xM32
Working temperature
-40°C/+60°C
GLOW WIRE
GW 960°C
Self-extinguishing UL94
V0
Group and categories EX
II 2GD
Ambient temperature Ta min
-35 °C
Ambient temperature Ta max
60 °C
Options
With mechanical interlock
Padlock
ø5mm
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SCAME EN.pdf | 19 Mbytes |
|
| 504.32877 504.32877 EN_504.32877.pdf | 56 Kbytes |
|
| Download general catalog |
|
