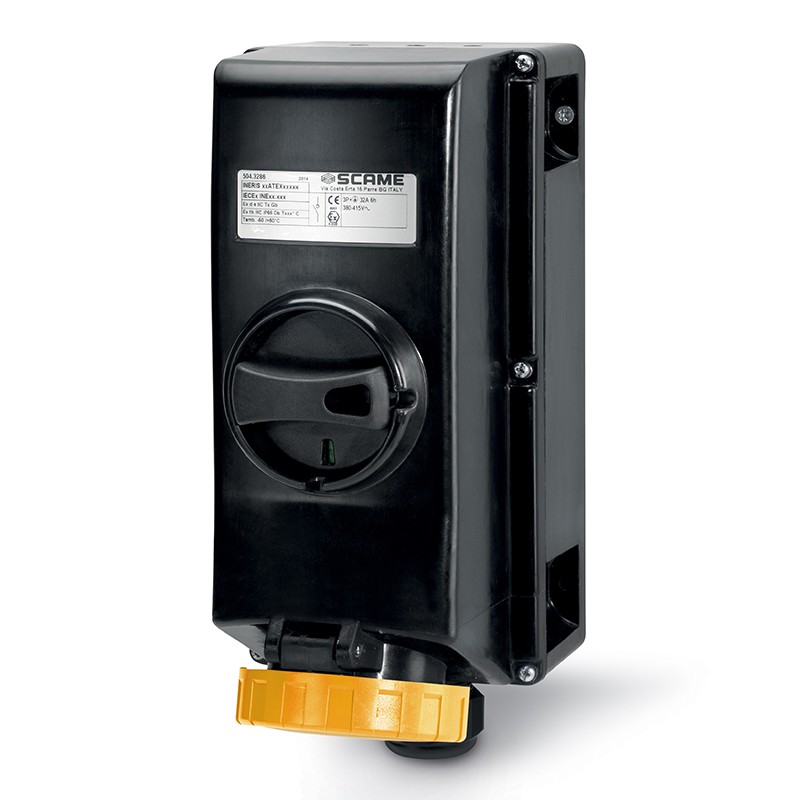

504.3279 SCAME INTERLOCKED SOCKET View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

504.3279 SCAME INTERLOCKED SOCKET

504.3279

SCAME

INTERLOCKED SOCKET

ENC BASE. MEC. 32A 3P+N+T 4h IP66

32A 3P+N+E 4h 100-130V 50Hz 60Hz II 2GD 130X260MM_PAR Mantle terminals With mechanical interlock

More details


Industrial socket/plug applications > Explosion proof CEE socket outlet

Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
ADVANCE-GRP[GD] Series
Synthetical description
INTERLOCKED SOCKET
Mounting version
SURFACE MOUNTING
Rated current
32A
Poles
3P+N+E
Hour position
4h
Rated voltage
100-130V
Working frequency
50Hz
60Hz
Colour
YELLOW
Material
GRP Glass Reinforced Polyester
Protection degree
Splash proof
Protection degree IP
IP66
Protection degree IK
7J
Terminals
Mantle terminals
Contact material
CuZn (brass)
Flange
130X260MM_PAR
Cable entry
1xM32
Working temperature
-35°C/+60°C
GLOW WIRE
GW 960°C
Self-extinguishing UL94
V0
Group and categories EX
II 2GD
Ambient temperature Ta min
-35 °C
Ambient temperature Ta max
60 °C
Options
With mechanical interlock
Padlock
ø5mm
Catalogue notes
ATEX [ATmosphères EXplosibles]: for applications in potentially explosive atmospheres.
You can request the customised configuration of the cable input for the entire series of the ADVANCE-GRP[GD] socket.
All versions include Ex cable gland and drilled-hole.


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
504.3279 504.3279 EN_504.3279.pdf 56 Kbytes 504.3279 504.3279 EN_504.3279.pdf
