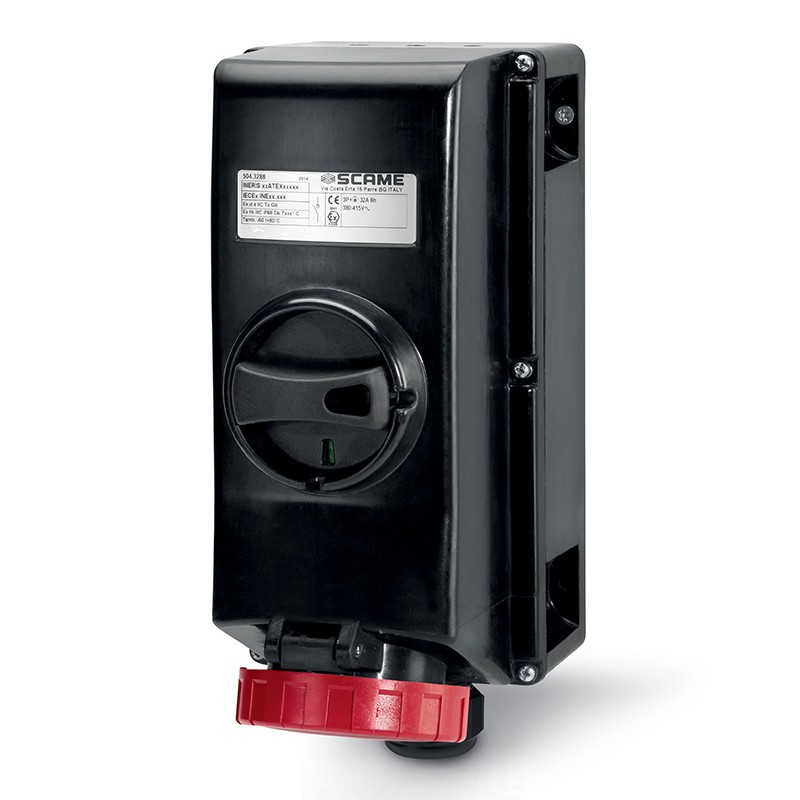

504.3278 SCAME INTERLOCKED SOCKET View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

504.3278 SCAME INTERLOCKED SOCKET

504.3278

SCAME

INTERLOCKED SOCKET

ENC BASE. MEC. 32A 2P+T 9h IP66 380-415V

32A 2P+E 9h 380-415V 50Hz 60Hz II 2GD 130X260MM_PAR Mantle terminals With mechanical interlock

More details


Industrial socket/plug applications > Explosion proof CEE socket outlet

Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

Total: $712.38
Unit price: $712.38
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
ADVANCE-GRP[GD] Series
Synthetical description
INTERLOCKED SOCKET
Mounting version
SURFACE MOUNTING
Rated current
32A
Poles
2P+E
Hour position
9h
Rated voltage
380-415V
Working frequency
50Hz
60Hz
Colour
RED
Material
GRP Glass Reinforced Polyester
Protection degree
Splash proof
Protection degree IP
IP66
Protection degree IK
7J
Terminals
Mantle terminals
Contact material
CuZn (brass)
Flange
130X260MM_PAR
Cable entry
1xM32
Working temperature
-35°C/+60°C
GLOW WIRE
GW 960°C
Self-extinguishing UL94
V0
Group and categories EX
II 2GD
Ambient temperature Ta min
-35 °C
Ambient temperature Ta max
60 °C
Options
With mechanical interlock
Padlock
ø5mm
Catalogue notes
ATEX [ATmosphères EXplosibles]: for applications in potentially explosive atmospheres.
You can request the customised configuration of the cable input for the entire series of the ADVANCE-GRP[GD] socket.
All versions include Ex cable gland and drilled-hole.


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
504.3278 504.3278 EN_504.3278.pdf 56 Kbytes 504.3278 504.3278 EN_504.3278.pdf
Download general catalog Download general catalog
