SCAME504.16872 SCAME INTERLOCKED SOCKET

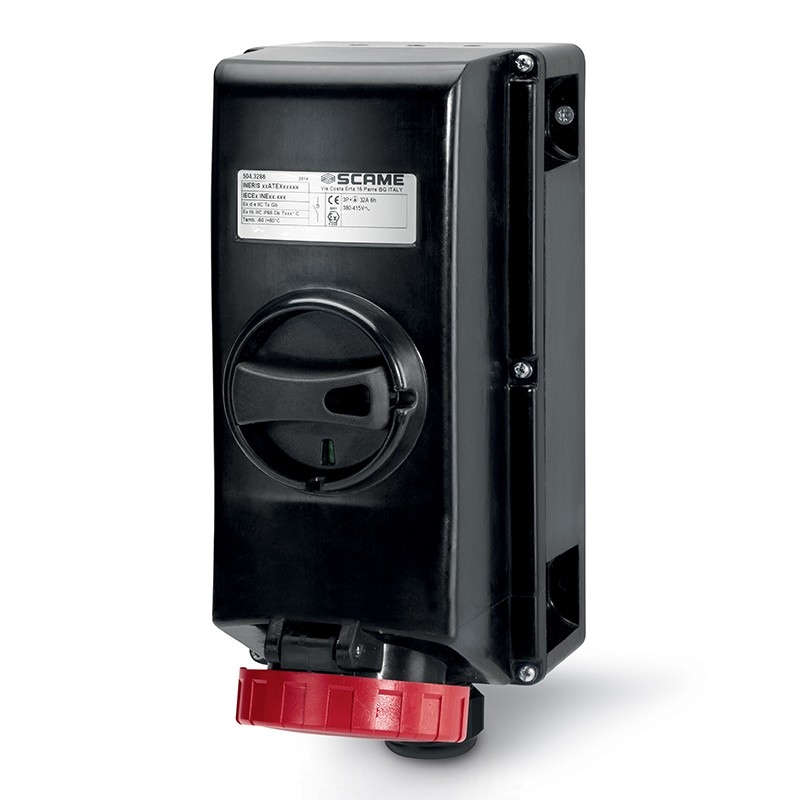

SCAME 504.16872 504.16872 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

504.16872 SCAME INTERLOCKED SOCKET

Reference: 504.16872

Manufacturer: SCAME

Description:

INTERLOCKED SOCKET
ENC BASE. MEC. 16A 3P+N+T 2h IP66 >50V
16A 3P+N+E 2h >50V >300-500Hz II 2GD 130X260MM_PAR Mantle terminals With mechanical interlock

Categories:

  • Industrial socket/plug applications > Explosion proof CEE socket outlet
  • SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Commercial Series
ADVANCE-GRP[GD] Series
Synthetical description
INTERLOCKED SOCKET
Mounting version
SURFACE MOUNTING
Rated current
16A
Poles
3P+N+E
Hour position
2h
Rated voltage
>50V
Working frequency
>300-500Hz
Colour
RED
Material
GRP Glass Reinforced Polyester
Protection degree
Splash proof
Protection degree IP
IP66
Protection degree IK
7J
Terminals
Mantle terminals
Contact material
CuZn (brass)
Flange
130X260MM_PAR
Cable entry
1xM25
Working temperature
-35°C/+60°C
GLOW WIRE
GW 960°C
Self-extinguishing UL94
V0
Group and categories EX
II 2GD
Ambient temperature Ta min
-35 °C
Ambient temperature Ta max
60 °C
Options
With mechanical interlock
Padlock
ø5mm
Catalogue notes
ATEX [ATmosphères EXplosibles]: for applications in potentially explosive atmospheres.
You can request the customised configuration of the cable input for the entire series of the ADVANCE-GRP[GD] socket.
All versions include Ex cable gland and drilled-hole.
The maximum amount of current available, taking into account the maximum overheating temperature allowed by the relevant standards, must be downgraded with respect to the nominal current by 25% for products with frequencies ranging above 100 Hz; contact Scame Technical Service for further information.
