SCAME504.16836 SCAME INTERLOCKED SOCKET

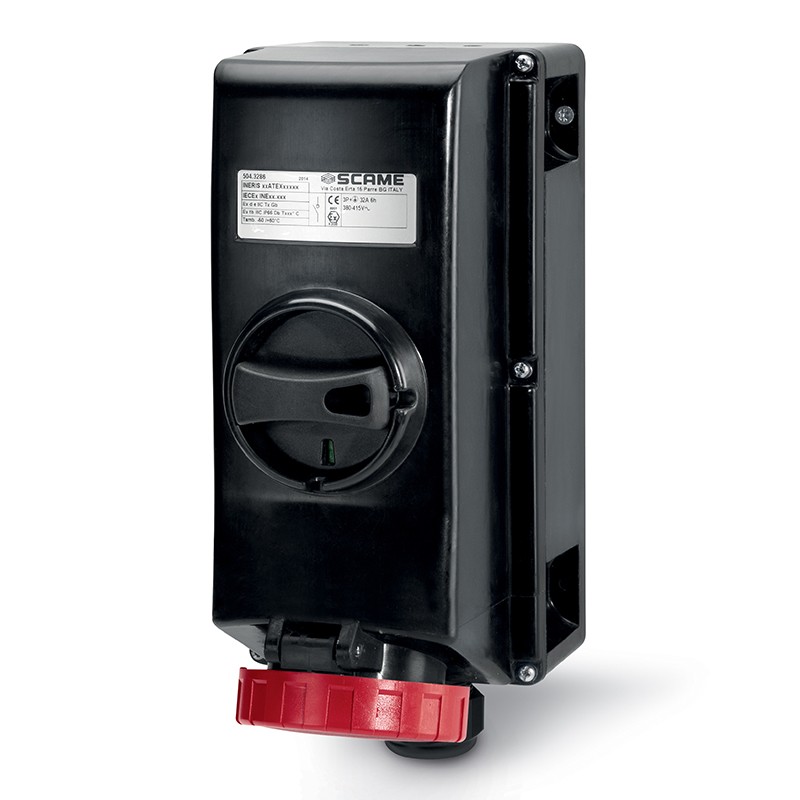

SCAME 504.16836 504.16836 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

504.16836 SCAME INTERLOCKED SOCKET

Reference: 504.16836

Manufacturer: SCAME

Description:

INTERLOCKED SOCKET
ENC BASE. MEC. 16A 2P+T 7h IP66 480-500V
16A 2P+E 7h 480-500V 50Hz 60Hz II 2GD 130X260MM_PAR Screw terminals With mechanical interlock

Categories:

  • Industrial socket/plug applications > Explosion proof CEE socket outlet
  • SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Material series
ADVANCE-GRP[GD] Series
Synthetical description
INTERLOCKED SOCKET
Mounting version
SURFACE MOUNTING
Rated current
16A
Poles
2P+E
Hour position
7h
Rated voltage (range)
400V-up
Rated voltage
480-500V
Working frequency
50Hz
60Hz
Colour
BLACK
Material
GRP Glass Reinforced Polyester
Protection degree
Splash proof
Protection degree IP
IP66
Protection degree IK
IK10
Terminals
Screw terminals
Contact material
CuZn (brass)
Flange
130X260MM_PAR
Cable entry
1xM25
Working temperature
-40°C/+60°C
GLOW WIRE
GW 960°C
Self-extinguishing UL94
V0
Group and categories EX
II 2GD
Ambient temperature Ta min
-35 °C
Ambient temperature Ta max
60 °C
Options
With mechanical interlock
Padlock
ø5mm
Catalogue notes

DATASHEET - PDF

Title
Size
Type
504.16836 504.16836 EN_504.16836.pdf
56 Kbytes
PDF CATALOGUE SCAME EN
20 Mbytes
