SCAME504.125876 SCAME INTERLOCKED SOCKET

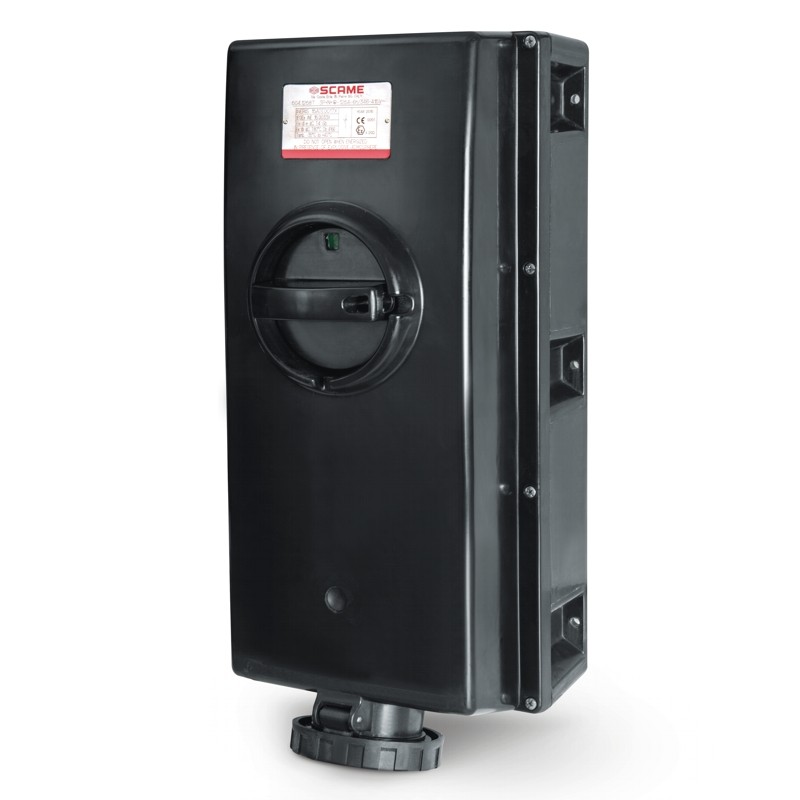

SCAME 504.125876 504.125876 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

504.125876 SCAME INTERLOCKED SOCKET

Reference: 504.125876

Manufacturer: SCAME

Description:

INTERLOCKED SOCKET
ENC BASE. MEC. 125A 3P+N+T 7h IP66
125A 3P+N+E 7h 480-500V 50Hz 60Hz II 2GD Screw terminals With mechanical interlock

Categories:

  • Industrial socket/plug applications > Explosion proof CEE socket outlet
  • SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 2.738,36 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 20 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Material series
ADVANCE-GRP[GD] Series
Synthetical description
INTERLOCKED SOCKET
Mounting version
SURFACE MOUNTING
Rated current
125A
Poles
3P+N+E
Hour position
7h
Rated voltage (range)
400V-up
Rated voltage
480-500V
Working frequency
50Hz
60Hz
Colour
BLACK
Material
GRP Glass Reinforced Polyester
Protection degree
Splash proof
Protection degree IP
IP66
Protection degree IK
IK10
Terminals
Screw terminals
Contact material
CuZn (brass)
Cable entry
1xM50
Working temperature
-40°C/+60°C
GLOW WIRE
GW 960°C
Self-extinguishing UL94
V0
Group and categories EX
II 2GD
Options
With mechanical interlock
Padlock
ø6,3mm
Catalogue notes

DATASHEET - PDF

Title
Size
Type
504.125876 504.125876 EN_504.125876.pdf
29 Kbytes
PDF CATALOGUE SCAME EN
20 Mbytes
