SCAME504.125874 SCAME INTERLOCKED SOCKET

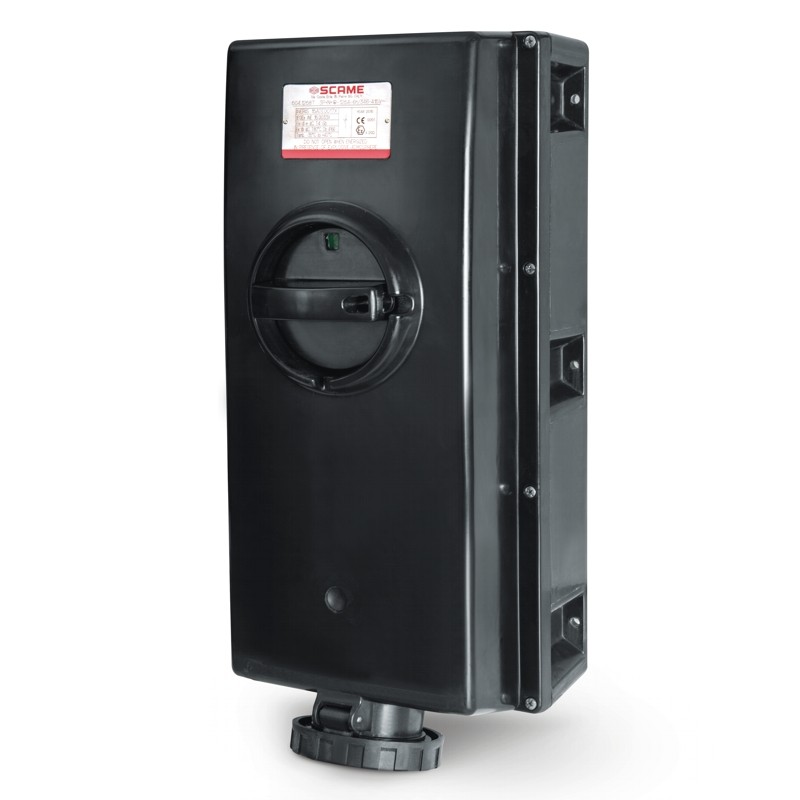

SCAME 504.125874 504.125874 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

504.125874 SCAME INTERLOCKED SOCKET

Reference: 504.125874

Manufacturer: SCAME

Description:

INTERLOCKED SOCKET
ENC BASE. MEC. 125A 3P+N+T 3h IP66
125A 3P+N+E 3h 380V 50Hz / 440V 60Hz 480-500V 50Hz 60Hz II 2GD 280X575MM Mantle terminals With mechanical interlock

Categories:

  • Industrial socket/plug applications > Explosion proof CEE socket outlet
  • SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Commercial Series
ADVANCE-GRP[GD] Series
Synthetical description
INTERLOCKED SOCKET
Mounting version
SURFACE MOUNTING
Rated current
125A
Poles
3P+N+E
Hour position
3h
Rated voltage
380V 50Hz / 440V 60Hz
480-500V
Working frequency
50Hz
60Hz
Colour
BLACK
Material
GRP Glass Reinforced Polyester
Protection degree
Splash proof
Protection degree IP
IP66
Protection degree IK
7J
Terminals
Mantle terminals
Contact material
CuZn (brass)
Flange
280X575MM
Cable entry
1xM50
Working temperature
-35°C/+40°C
GLOW WIRE
GW 960°C
Self-extinguishing UL94
V0
Group and categories EX
II 2GD
Ambient temperature Ta min
-35 °C
Ambient temperature Ta max
40 °C
Options
With mechanical interlock
Padlock
ø6,3mm
Catalogue notes
ATEX [ATmosphères EXplosibles]: for applications in potentially explosive atmospheres.
You can request the customised configuration of the cable input for the entire series of the ADVANCE-GRP[GD] socket.
All versions include Ex cable gland and drilled-hole.

DATASHEET - PDF

Title
Size
Type
504.125874 504.125874 EN_504.125874.pdf
29 Kbytes
PDF CATALOGUE SCAME EN
20 Mbytes
