SCAMESurface mounting socket outlets - SCAMEADVANCE-GRP SERIES IP66/IP67 - SCAME503.1670 SCAME INTERLOCK.SOCKET 2P+E IP66 16A 4h

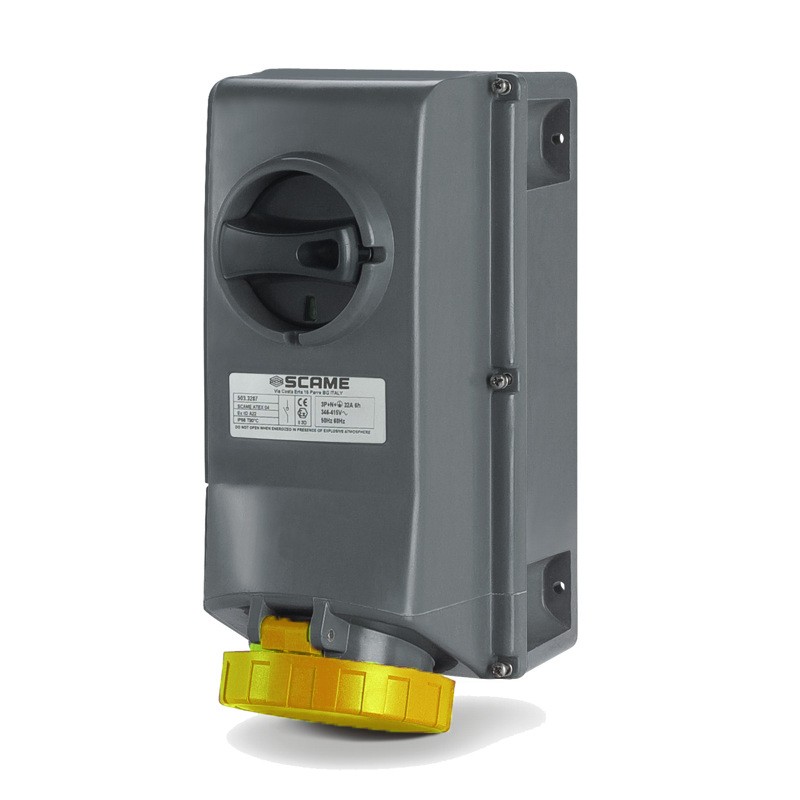

SCAME 503.1670 503.1670 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

503.1670 SCAME INTERLOCK.SOCKET 2P+E IP66 16A 4h

Reference: 503.1670

Manufacturer: SCAME

Description:

INTERLOCK.SOCKET 2P+E IP66 16A 4h
ENC BASE. MEC. 2P+T IP66 16A 4h 100-130V
16A 2P+E 4h 100-130V 50Hz 60Hz II 2D 130X260MM_PAR Mantle terminals With mechanical interlock

Categories:

  • Industrial socket/plug applications > Explosion proof CEE socket outlet
  • SCAME > Surface mounting socket outlets - SCAME > ADVANCE-GRP Series IP66/IP67 - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 135,20 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 20 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Commercial Series
ADVANCE-GRP[EX] Series
Synthetical description
INTERLOCKED SOCKET
Mounting version
SURFACE MOUNTING
Rated current
16A
Poles
2P+E
Hour position
4h
Rated voltage
100-130V
Working frequency
50Hz
60Hz
Colour
YELLOW
Material
GRP Glass Reinforced Polyester
Protection degree
Splash proof
Protection degree IP
IP66
Protection degree IK
7J
Terminals
Mantle terminals
Contact material
CuZn (brass)
Flange
130X260MM_PAR
Working temperature
-25°C/+60°C
GLOW WIRE
GW 960°C
Self-extinguishing UL94
V0
Group and categories EX
II 2D
Dust protection
Ex tb IIIC T90°C Db IP66
Ambient temperature Ta min
-25 °C
Ambient temperature Ta max
60 °C
Options
With mechanical interlock
Padlock
ø5mm
Catalogue notes
ATEX [ATmosphères EXplosibles]: for applications in potentially explosive atmospheres.

DATASHEET - PDF

Title
Size
Type
503.1670 503.1670 EN_503.1670.pdf
40 Kbytes
PDF CATALOGUE SCAME EN
20 Mbytes
