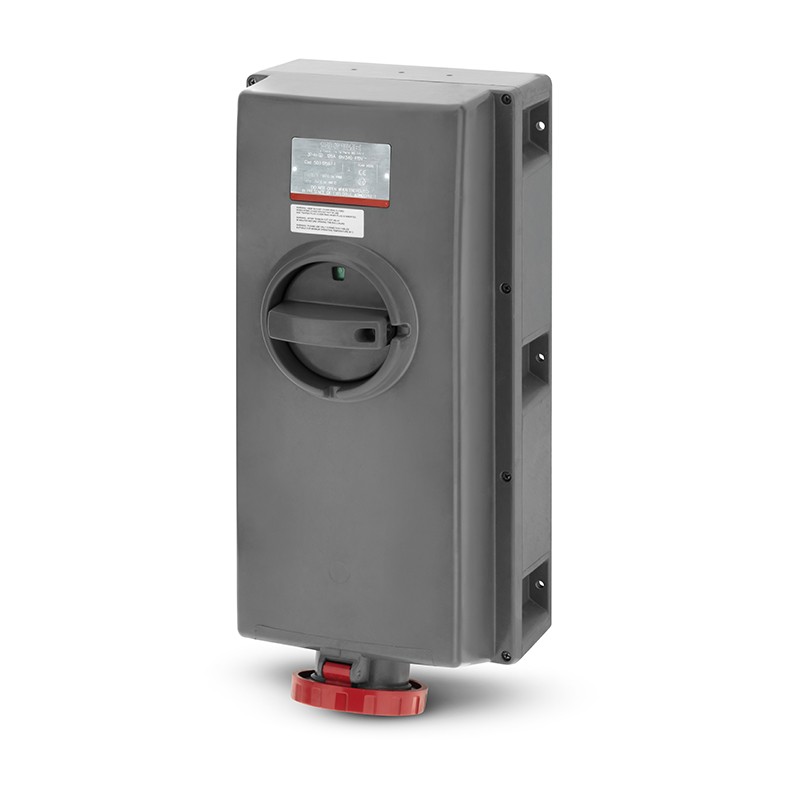

503.125867 SCAME ENC BASE. MEC. 125A 3P+T 5h 600-690V View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

503.125867 SCAME ENC BASE. MEC. 125A 3P+T 5h 600-690V

503.125867

SCAME

ENC BASE. MEC. 125A 3P+T 5h 600-690V

125A 3P+E 5h 600-690V 50Hz 60Hz II 3D Mantle terminals With mechanical interlock

More details


Surface mounting socket outlets - SCAME > ADVANCE-GRP Series IP66/IP67 - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

Total: $940.22
Unit price: $940.22
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Best sellers

▲

More info

▲


Commercial Series
ADVANCE GRP Series
Synthetical description
INTERLOCKED SOCKET
Mounting version
SURFACE MOUNTING
Rated current
125A
Poles
3P+E
Hour position
5h
Rated voltage
600-690V
Working frequency
50Hz
60Hz
Colour
BLACK
Material
GRP Glass Reinforced Polyester
Protection degree
Watertight
Protection degree IP
IP66/IP67/IP69
Protection degree IK
IK10
Terminals
Mantle terminals
Contact material
CuZn (brass)
Working temperature
-40°C/+60°C
GLOW WIRE
GW 960°C
Self-extinguishing UL94
V0
Group and categories EX
II 3D
Dust protection
EX tc IIIC T90°C Db IP66
Ambient temperature Ta min
-25 °C
Ambient temperature Ta max
60 °C
Options
With mechanical interlock
Notes
CON SEZIONATORE
Padlock
ø6,3mm
Catalogue notes
Blank side with drilling point marks
This product, used for fixed installations in ATEX environments with potential risk of explosion, is identified as Zone 22 in «self-certification» and can operate from -25°C to +60°C, IP66, with an impact protection degree of up to 7J.


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
503.125867 503.125867 EN_503.125867.pdf 50 Kbytes 503.125867 503.125867 EN_503.125867.pdf
Download general catalog Download general catalog
