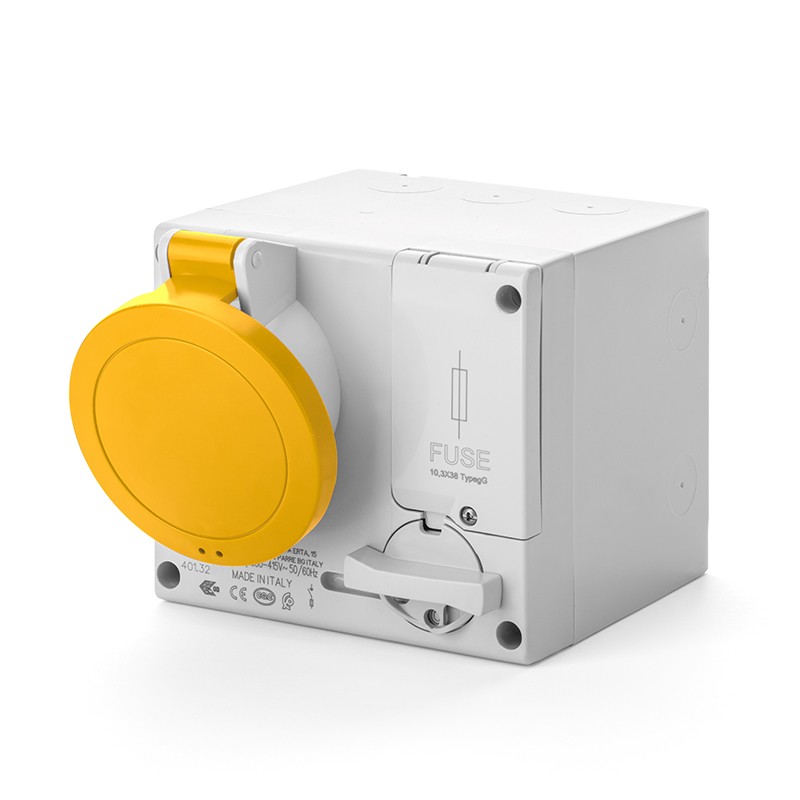

501.3272 SCAME INTERLOCKED SOCKET 3P+E 32A 4h IP44 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

501.3272 SCAME INTERLOCKED SOCKET 3P+E 32A 4h IP44

501.3272

SCAME

INTERLOCKED SOCKET 3P+E 32A 4h IP44

ENC BASE. MEC. 32A 3P+T 4h IP44 100-130V

INTERLOCKED SOCKET

More details


Industrial socket/plug applications > CEE socket outlet, disconnectable, with fuse

Surface mounting socket outlets - SCAME > OMNIA Series Without fuse holder - IP44 - SCAME

* Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

More info



Commercial series
OMNIA Series
Synthetical description
INTERLOCKED SOCKET
Mounting version
SURFACE MOUNTING
Rated current
32A
Poles
3P+E
Hour position
4h
Rated voltage (range)
50-200V
Rated voltage
100-130V
Working frequency
60Hz
50Hz
Colour
YELLOW
Material
THERMOPLASTIC
Protection degree
Splash proof
Protection degree IP
IP44
Protection degree IK
IK08
Terminals
Screw terminals
Contact material
CuZn (brass)
Flange
136X125MM_PAR
Options
With mechanical interlock
Notes
WITH FUSE HOLDER

Datasheet - PDF
