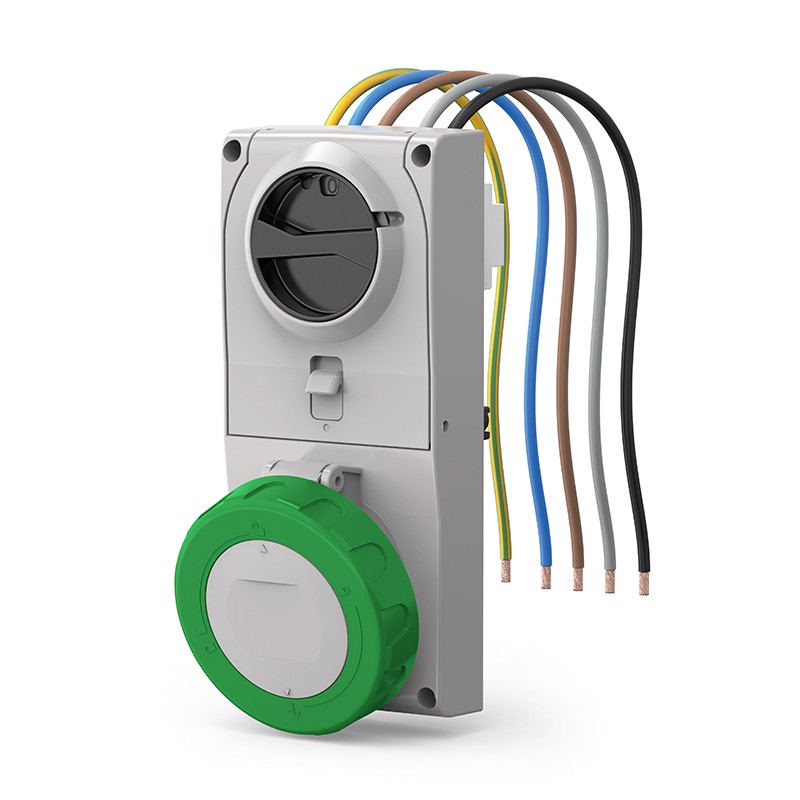

408.32872 SCAME ENC BASE. Mec. 32A 3P+N+T 2h
408.32872
SCAME
ENC BASE. Mec. 32A 3P+N+T 2h
INTERLOCKED SOCKET
Home > SCAME
* Brand new product in its original packaging covered by the warranties and certifications provided by SCAME
Best sellers
▲More info
▲Commercial series
PRX
Synthetical description
INTERLOCKED SOCKET
Mounting version
FLUSH MOUNTING
Rated current
32A
Poles
3P+N+E
Hour position
2h
Rated voltage (range)
50-200V
Rated voltage
>50V
Working frequency
>300-500Hz
Colour
GREEN
Material
THERMOPLASTIC
Protection degree
Watertight
Protection degree IP
IP66/IP67/IP69
Protection degree IK
IK10
Terminals
Screw terminals
Contact material
CuZn (brass)
Flange
103X230MM
Options
With mechanical interlock
Notes
WITH FUSE HOLDER
Fuse type
gG 10,3x38mm
Padlock
ø5mm
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SCAME EN.pdf | 19 Mbytes |
|
| 408.32872 408.32872 EN_408.32872.pdf | 50 Kbytes |
|
| Download general catalog |
|
