SCAME407.6375 SCAME ENC BASE. Mec. 63A 3P+N+T 9h

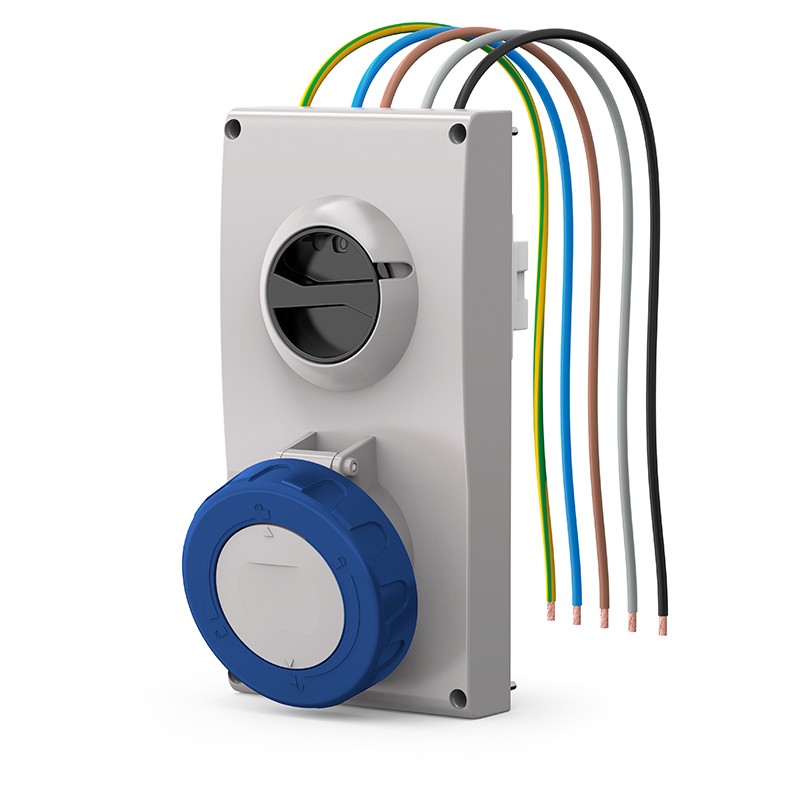

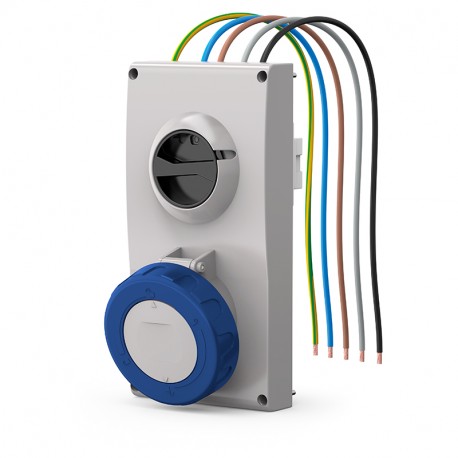

SCAME 407.6375 407.6375 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

407.6375 SCAME ENC BASE. Mec. 63A 3P+N+T 9h

Reference: 407.6375

Manufacturer: SCAME

Description:

ENC BASE. Mec. 63A 3P+N+T 9h
63A 3P+N+E 9h 208-250V 60Hz 50Hz 136X275MM Screw terminals With mechanical interlock

Categories:

  • SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Commercial Series
PROXIMA Series
Synthetical description
INTERLOCKED SOCKET
Mounting version
FLUSH MOUNTING
Rated current
63A
Poles
3P+N+E
Hour position
9h
Rated voltage
208-250V
Working frequency
60Hz
50Hz
Colour
BLUE
Material
THERMOPLASTIC
Protection degree
Watertight
Protection degree IP
IP66/IP67/IP69
Protection degree IK
IK09
Terminals
Screw terminals
Contact material
CuZn (brass)
Flange
136X275MM
Options
With mechanical interlock
Notes
WITHOUT FUSE HOLDER
Padlock
ø5mm
Catalogue notes
Pre-wired connection cables provided
Supplied with stainless steel fixing screws.

DATASHEET - PDF

Title
Size
Type
407.6375 407.6375 EN_407.6375.pdf
51 Kbytes
PDF CATALOGUE SCAME EN
20 Mbytes
