SCAMEInterlocked switch socket outlets - SCAMEOMNIA SERIES WITHOUT FUSE HOLDER - IP44 - SCAME403.AMRK6387 SCAME INTERLOCKED SOCKET

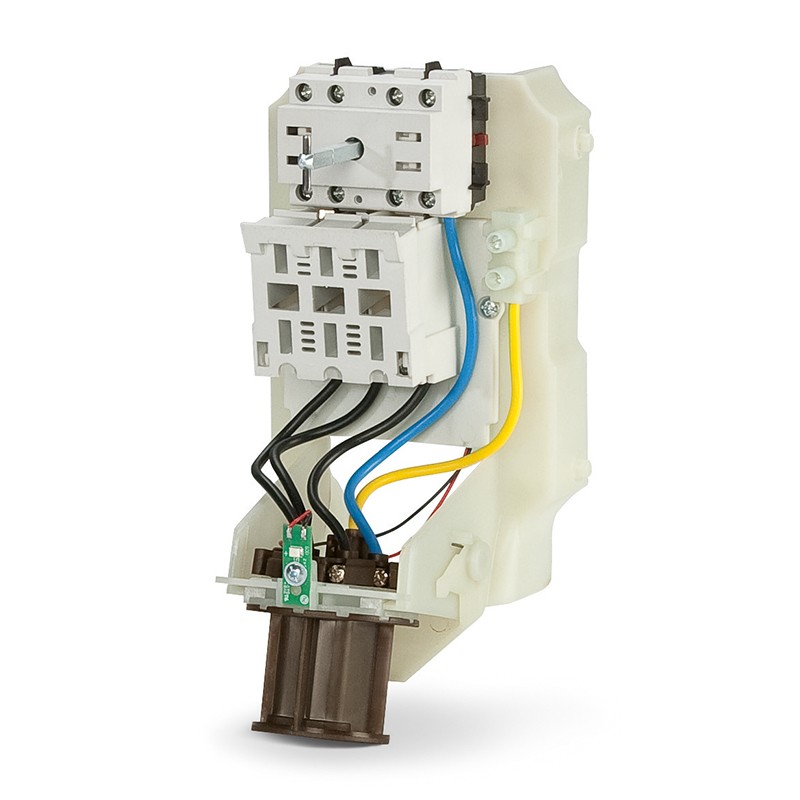

SCAME 403.AMRK6387 403.AMRK6387 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

403.AMRK6387 SCAME INTERLOCKED SOCKET

Reference: 403.AMRK6387

Manufacturer: SCAME

Description:

INTERLOCKED SOCKET
ENC BASE. Mec. 63A 3P+N+T 6h
63A 3P+N+E 6h 346-415V 170X380MM Screw terminals With mechanical interlock

Categories:

  • SCAME > Interlocked switch socket outlets - SCAME > OMNIA Series Without fuse holder - IP44 - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Commercial Series
ADVANCE-GRP[AMR] Series
Synthetical description
INTERLOCKED SOCKET
Mounting version
FLUSH MOUNTING
Rated current
63A
Poles
3P+N+E
Hour position
6h
Rated voltage
346-415V
Colour
RED
Material
GRP Glass Reinforced Polyester
Protection degree
Watertight
Protection degree IP
IP66/IP67/IP69
Protection degree IK
IK10
Terminals
Screw terminals
Contact material
CuZn (brass)
Flange
170X380MM
Working temperature
-40°C/+60°C
GLOW WIRE
GW 960°C
Self-extinguishing UL94
V0
Options
With mechanical interlock
Notes
WITHOUT FUSE HOLDER
Padlock
ø6,3mm
Catalogue notes
Kit for conversion to AMR system

DATASHEET - PDF

Title
Size
Type
403.AMRK6387 403.AMRK6387 EN_403.AMRK6387.pdf
64 Kbytes
PDF CATALOGUE SCAME EN
20 Mbytes
