SCAMEInterlocked switch socket outlets - SCAMEOMNIA SERIES WITHOUT FUSE HOLDER - IP44 - SCAME403.AMRK6383-F SCAME INTERLOCKED SOCKET
SCAME 403.AMRK6383-F 403.AMRK6383-F - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

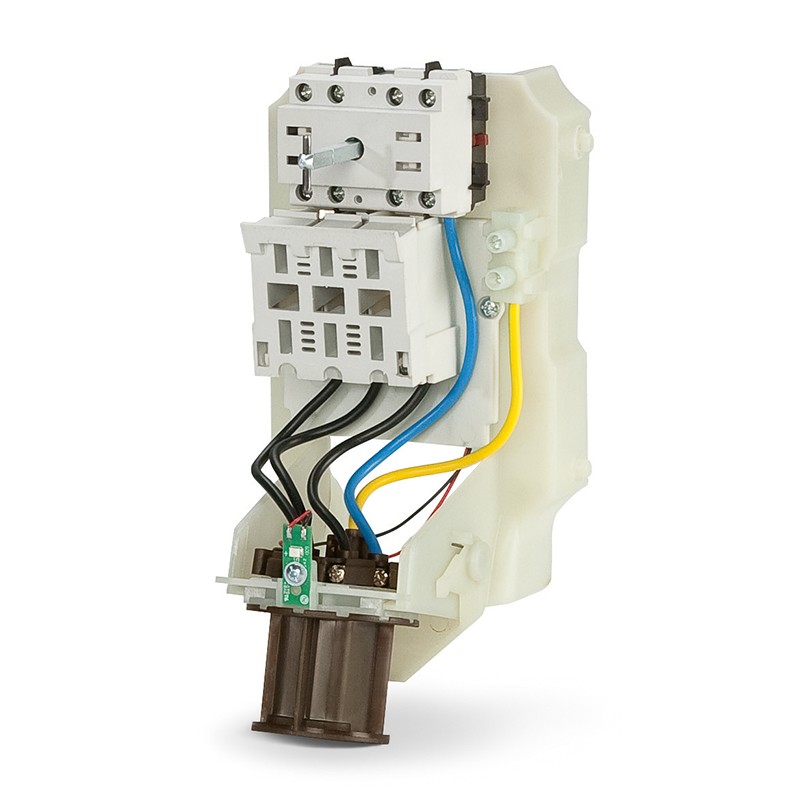

403.AMRK6383-F SCAME INTERLOCKED SOCKET

Reference: 403.AMRK6383-F

Manufacturer: SCAME

Description:

INTERLOCKED SOCKET
ENC BASE. Mec. 63A 2P+T 6h IP66/IP67/IP69
63A 2P+E 6h 200-250V 170X380MM Screw terminals With mechanical interlock

Categories:

  • SCAME > Interlocked switch socket outlets - SCAME > OMNIA Series Without fuse holder - IP44 - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

Commercial Series
ADVANCE-GRP[AMR] Series
Synthetical description
INTERLOCKED SOCKET
Mounting version
FLUSH MOUNTING
Rated current
63A
Poles
2P+E
Hour position
6h
Rated voltage
200-250V
Colour
BLUE
Material
GRP Glass Reinforced Polyester
Protection degree
Watertight
Protection degree IP
IP66/IP67/IP69
Protection degree IK
IK10
Terminals
Screw terminals
Contact material
CuZn (brass)
Flange
170X380MM
Working temperature
-40°C/+60°C
GLOW WIRE
GW 960°C
Self-extinguishing UL94
V0
Options
With mechanical interlock
Notes
WITH FUSE HOLDER
Fuse type
gG 22x58mm
Padlock
ø6,3mm
Catalogue notes
Fuses not supplied
The products of the AMR System, from the acronym AMR (Automated Meter Reading), feature advanced technology. Thanks to the AMR system, you can acquire energy consumption data, measure currents and power, analyse grid parameters and send/receive alarm messages through text message or by e-mail.
Kit for conversion to AMR system

DATASHEET - PDF

Title
Size
Type
403.AMRK6383-F 403.AMRK6383-F EN_403.AMRK6383-F.pdf
64 Kbytes
PDF CATALOGUE SCAME EN
20 Mbytes
