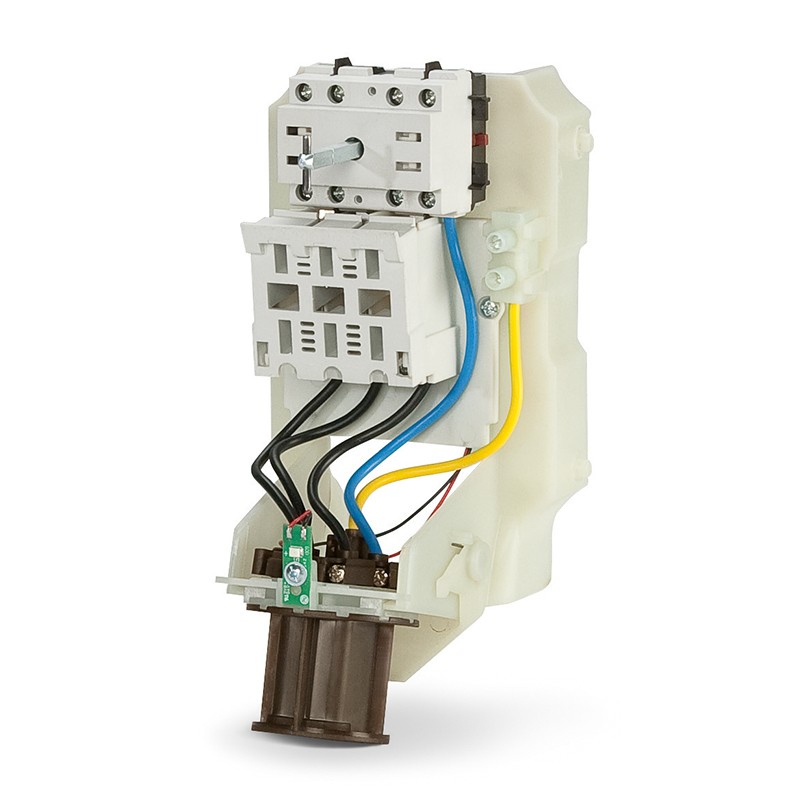

403.AMRK3286-F SCAME INTERLOCKED SOCKET View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

403.AMRK3286-F SCAME INTERLOCKED SOCKET

403.AMRK3286-F

SCAME

INTERLOCKED SOCKET

ENC BASE. Mec. 32A 3P+T 6h IP66/IP67/IP69

32A 3P+E 6h 380-415V 130X260MM Screw terminals With mechanical interlock

More details


Interlocked switch socket outlets - SCAME > OMNIA Series Without fuse holder - IP44 - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
ADVANCE-GRP[AMR] Series
Synthetical description
INTERLOCKED SOCKET
Mounting version
FLUSH MOUNTING
Rated current
32A
Poles
3P+E
Hour position
6h
Rated voltage
380-415V
Colour
RED
Material
GRP Glass Reinforced Polyester
Protection degree
Watertight
Protection degree IP
IP66/IP67/IP69
Protection degree IK
IK10
Terminals
Screw terminals
Contact material
CuZn (brass)
Flange
130X260MM
Working temperature
-40°C/+60°C
GLOW WIRE
GW 960°C
Self-extinguishing UL94
V0
Options
With mechanical interlock
Notes
WITH FUSE HOLDER
Fuse type
gG 10,3x38mm
Padlock
ø5mm
Catalogue notes
Fuses not supplied
The products of the AMR System, from the acronym AMR (Automated Meter Reading), feature advanced technology. Thanks to the AMR system, you can acquire energy consumption data, measure currents and power, analyse grid parameters and send/receive alarm messages through text message or by e-mail.
Kit for conversion to AMR system


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
403.AMRK3286-F 403.AMRK3286-F EN_403.AMRK3286-F.pdf 64 Kbytes 403.AMRK3286-F 403.AMRK3286-F EN_403.AMRK3286-F.pdf
Download general catalog Download general catalog
