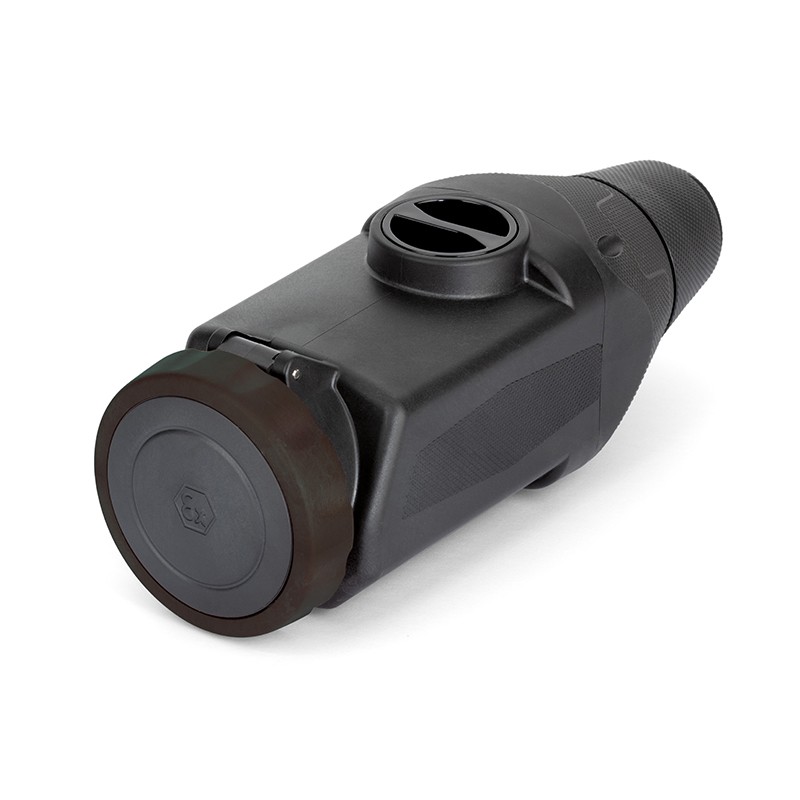

319.32476 SCAME EXTENSION 32A 3P+N+T 7h EX ZONE 1
319.32476
SCAME
EXTENSION 32A 3P+N+T 7h EX ZONE 1
32A 3P+N+E 7h 480-500V 60Hz 50Hz II 2GD Screw terminals
Home > SCAME
* Brand new product in its original packaging covered by the warranties and certifications provided by SCAME
Related products
▲Best sellers
▲More info
▲Material series
OPTIMA-EX[GD] Series
Synthetical description
CONNECTOR
Mounting version
PORTABLE
Rated current
32A
Poles
3P+N+E
Hour position
7h
Rated voltage (range)
400V-up
Rated voltage
480-500V
Working frequency
60Hz
50Hz
Colour
BLACK
Material
THERMOPLASTIC
Protection degree
Splash proof
Protection degree IP
IP66
Protection degree IK
IK08
Types of available outlets
STRAIGHT
Terminals
Screw terminals
Contact material
CuZn (brass)
Cable entry
CABLE GLAND
Group and categories EX
II 2GD
Modo protezione gas
Ex db eb IIC T3 Gb Ta-50/+60°C
Gas protection mode
Ex db eb IIC T4 Gb Ta-50/+50°C
Dust protection
Ex tb IIIC T85°C Db IP66
Ambient temperature Ta min
-50 °C
Ambient temperature Ta max
60 °C
Catalogue notes
Datasheet - PDF
