SCAME319.32467 SCAME EXTENSION 32A 3P+T 5h EX ZONE 1

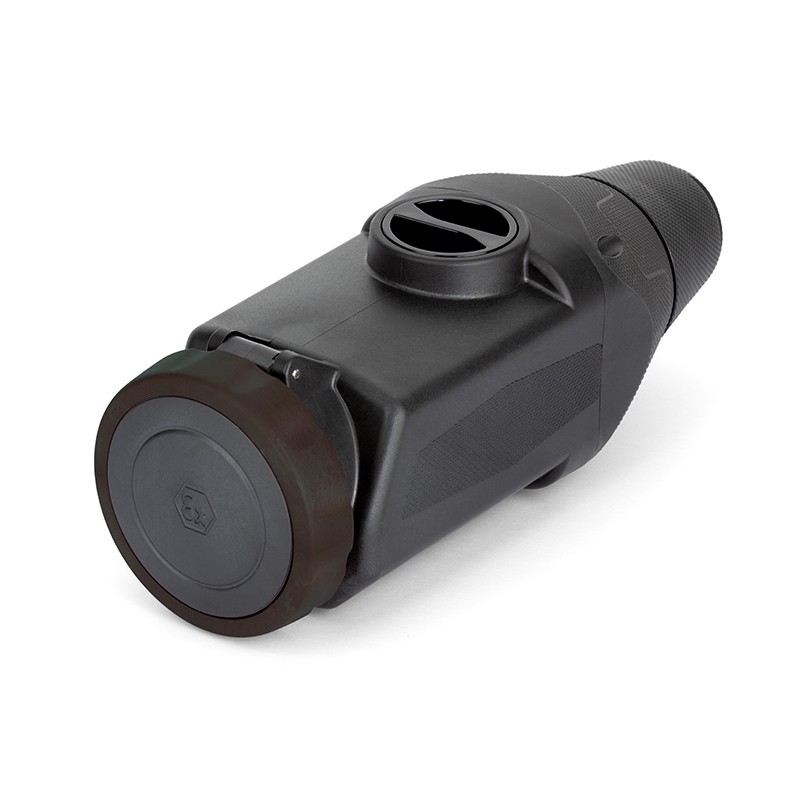

SCAME 319.32467 319.32467 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

319.32467 SCAME EXTENSION 32A 3P+T 5h EX ZONE 1

Reference: 319.32467

Manufacturer: SCAME

Description:

EXTENSION 32A 3P+T 5h EX ZONE 1
32A 3P+E 5h 600-690V 60Hz 50Hz II 2GD Mantle terminals

Categories:

  • SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • Reviews
Guarantee, repair and return.

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Commercial Series
OPTIMA-EX[GD] Series
Synthetical description
CONNECTOR
Mounting version
PORTABLE
Rated current
32A
Poles
3P+E
Hour position
5h
Rated voltage
600-690V
Working frequency
60Hz
50Hz
Colour
BLACK
Material
THERMOPLASTIC
Protection degree
Splash proof
Protection degree IP
IP66
Protection degree IK
7J
Types of available outlets
STRAIGHT
Terminals
Mantle terminals
Contact material
CuZn (brass)
Cable entry
CABLE GLAND
GLOW WIRE
GW 960°C
Group and categories EX
II 2GD
Modo protezione gas
Ex db eb IIC T3 Gb Ta-50/+60°C
Gas protection mode
Ex db eb IIC T4 Gb Ta-50/+50°C
Dust protection
Ex tb IIIC T85°C Db IP66
Ambient temperature Ta min
-50 °C
Ambient temperature Ta max
60 °C
Padlock
ø4,7mm
Catalogue notes
ATEX [ATmosphères EXplosibles]: for applications in potentially explosive atmospheres.

DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE SCAME EN
20 Mbytes
