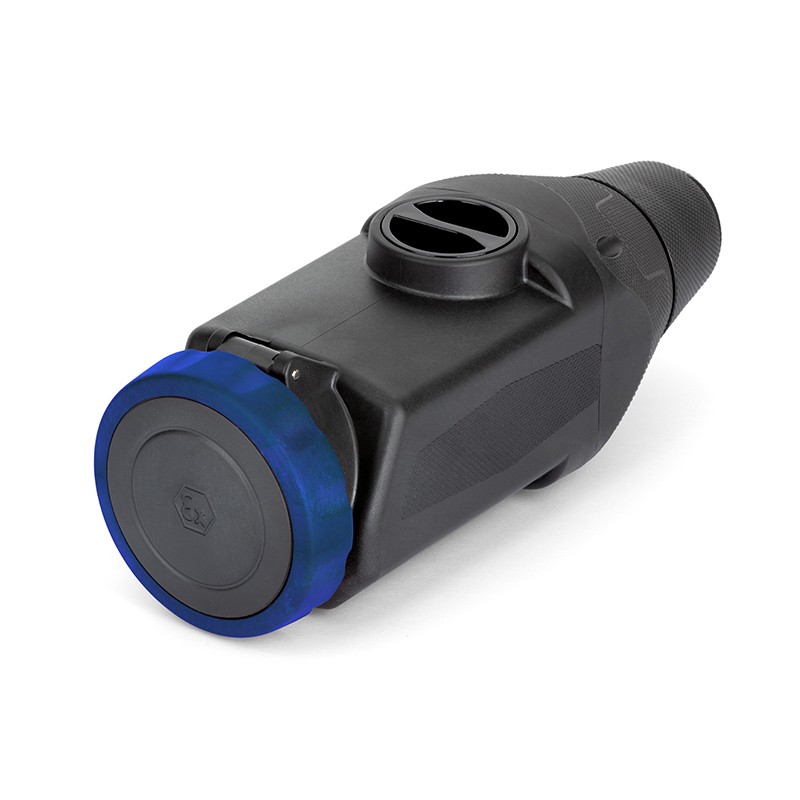

319.3244 SCAME EXTENSION 32A 3P+T 9h EX ZONE 1 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

319.3244 SCAME EXTENSION 32A 3P+T 9h EX ZONE 1

319.3244

SCAME

EXTENSION 32A 3P+T 9h EX ZONE 1

32A 3P+E 9h 200-250V 60Hz 50Hz II 2GD Mantle terminals

More details


Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

More info



Commercial Series
OPTIMA-EX[GD] Series
Synthetical description
CONNECTOR
Mounting version
PORTABLE
Rated current
32A
Poles
3P+E
Hour position
9h
Rated voltage
200-250V
Working frequency
60Hz
50Hz
Colour
BLUE
Material
THERMOPLASTIC
Protection degree
Splash proof
Protection degree IP
IP66
Protection degree IK
7J
Types of available outlets
STRAIGHT
Terminals
Mantle terminals
Contact material
CuZn (brass)
Cable entry
CABLE GLAND
GLOW WIRE
GW 960°C
Group and categories EX
II 2GD
Modo protezione gas
Ex db eb IIC T3 Gb Ta-50/+60°C
Gas protection mode
Ex db eb IIC T4 Gb Ta-50/+50°C
Dust protection
Ex tb IIIC T85°C Db IP66
Ambient temperature Ta min
-50 °C
Ambient temperature Ta max
60 °C
Padlock
ø4,7mm
Catalogue notes
ATEX [ATmosphères EXplosibles]: for applications in potentially explosive atmospheres.


Datasheet - PDF
