SCAME319.3243 SCAME EXTENSION 32A 2P+T 6h EX ZONE 1

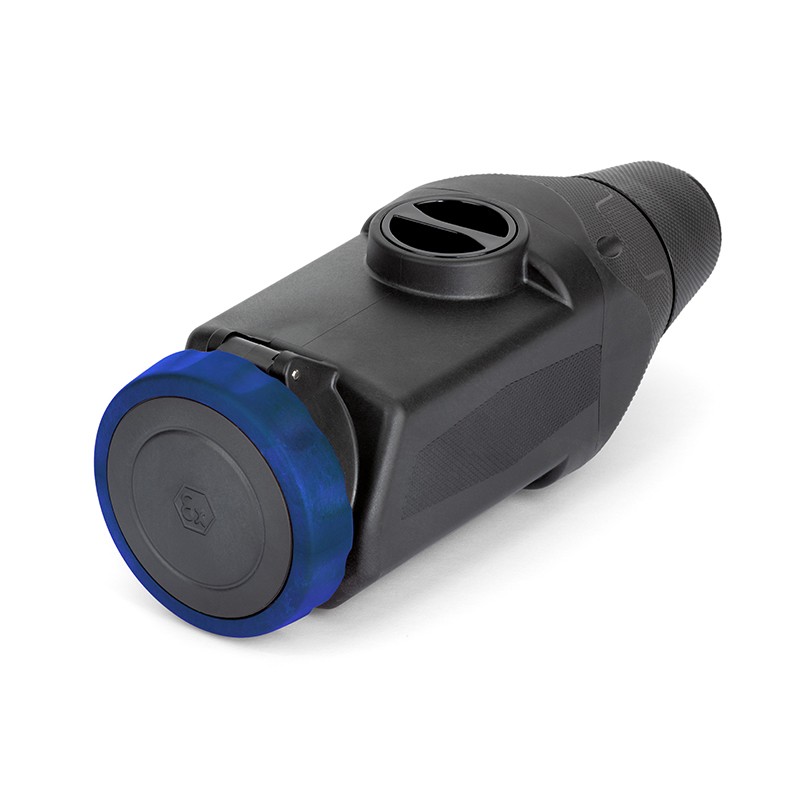

SCAME 319.3243 319.3243 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

319.3243 SCAME EXTENSION 32A 2P+T 6h EX ZONE 1

Reference: 319.3243

Manufacturer: SCAME

Description:

EXTENSION 32A 2P+T 6h EX ZONE 1
32A 2P+E 6h 200-250V 60Hz 50Hz II 2GD Screw terminals

Categories:

  • SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 353,34 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 20 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Material series
OPTIMA-EX[GD] Series
Synthetical description
CONNECTOR
Mounting version
PORTABLE
Rated current
32A
Poles
2P+E
Hour position
6h
Rated voltage (range)
200-250V
Rated voltage
200-250V
Working frequency
60Hz
50Hz
Colour
BLUE
Material
THERMOPLASTIC
Protection degree
Splash proof
Protection degree IP
IP66
Protection degree IK
IK08
Types of available outlets
STRAIGHT
Terminals
Screw terminals
Contact material
CuZn (brass)
Cable entry
CABLE GLAND
Group and categories EX
II 2GD
Modo protezione gas
Ex db eb IIC T3 Gb Ta-50/+60°C
Gas protection mode
Ex db eb IIC T4 Gb Ta-50/+50°C
Dust protection
Ex tb IIIC T85°C Db IP66
Ambient temperature Ta min
-50 °C
Ambient temperature Ta max
60 °C
