> SCAME>219.32372 SCAME PLUG 32A 3P+N+E 2h 50V 300-500Hz
Previous Product Next Product

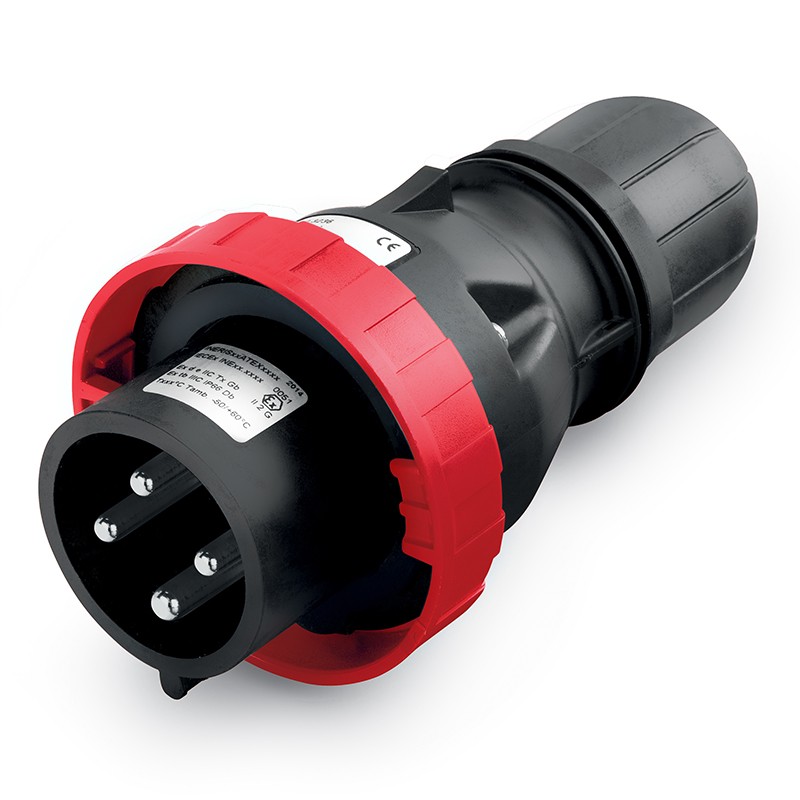

219.32372 SCAME PLUG 32A 3P+N+E 2h 50V 300-500Hz View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

219.32372 SCAME PLUG 32A 3P+N+E 2h 50V 300-500Hz

219.32372

SCAME

PLUG 32A 3P+N+E 2h >50V >300-500Hz

AERIAL PLUG 3P+N+T IP66 32A 2h EX

32A 3P+N+E 2h >50V >300-500Hz II 2GD Mantle terminals Low temperature [-50°C]

More details


Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Best sellers

▲

More info

▲


Commercial Series
OPTIMA-EX[GD] Series
Synthetical description
PLUG
Mounting version
PORTABLE
Rated current
32A
Poles
3P+N+E
Hour position
2h
Rated voltage
>50V
Working frequency
>300-500Hz
Colour
RED
Material
THERMOPLASTIC
Protection degree
Splash proof
Protection degree IP
IP66
Impact resistance
7J
Types of available outlets
STRAIGHT
Terminals
Mantle terminals
Contact material
CuZn (brass)
Surface treatment contacts
Nickel-plated
Cable entry
CABLE GLAND
Group and categories EX
II 2GD
Ambient temperature Ta min
-50 °C
Ambient temperature Ta max
60 °C
Options
Low temperature [-50°C]
Catalogue notes
ATEX [ATmosphères EXplosibles]: for applications in potentially explosive atmospheres.
The maximum amount of current available, taking into account the maximum overheating temperature allowed by the relevant standards, must be downgraded with respect to the nominal current by 25% for products with frequencies ranging above 100 Hz; contact Scame Technical Service for further information.


Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
219.32372 219.32372 EN_219.32372.pdf 71 Kbytes 219.32372 219.32372 EN_219.32372.pdf
Download general catalog Download general catalog
