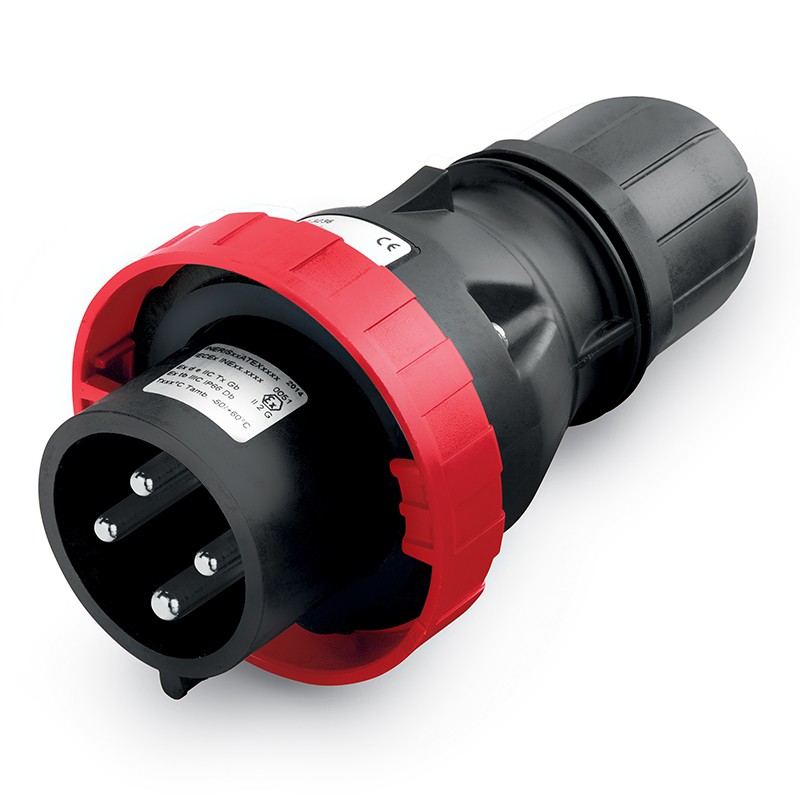

219.3237 SCAME PLUG 3P+N+E IP66/IP67 32A 6h 346-415V AC View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

219.3237 SCAME PLUG 3P+N+E IP66/IP67 32A 6h 346-415V AC

219.3237

SCAME

PLUG 3P+N+E IP66/IP67 32A 6h 346-415V AC

AERIAL PLUG 3P+N+T IP66 32A 6h EX

32A 3P+N+E 6h 346-415V 60Hz 50Hz II 2GD Mantle terminals Low temperature [-50°C]

More details


Industrial socket/plug applications > Explosion proof CEE socket outlet

Industrial Plugs - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

Total: $151.15
Unit price: $151.15
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

Best sellers

More info



Commercial Series
OPTIMA-EX[GD] Series
Synthetical description
PLUG
Mounting version
PORTABLE
Rated current
32A
Poles
3P+N+E
Hour position
6h
Rated voltage
346-415V
Working frequency
60Hz
50Hz
Colour
RED
Material
THERMOPLASTIC
Protection degree
Splash proof
Protection degree IP
IP66
Impact resistance
7J
Types of available outlets
STRAIGHT
Terminals
Mantle terminals
Contact material
CuZn (brass)
Surface treatment contacts
Nickel-plated
Cable entry
CABLE GLAND
Group and categories EX
II 2GD
Ambient temperature Ta min
-50 °C
Ambient temperature Ta max
60 °C
Options
Low temperature [-50°C]
Catalogue notes
ATEX [ATmosphères EXplosibles]: for applications in potentially explosive atmospheres.
