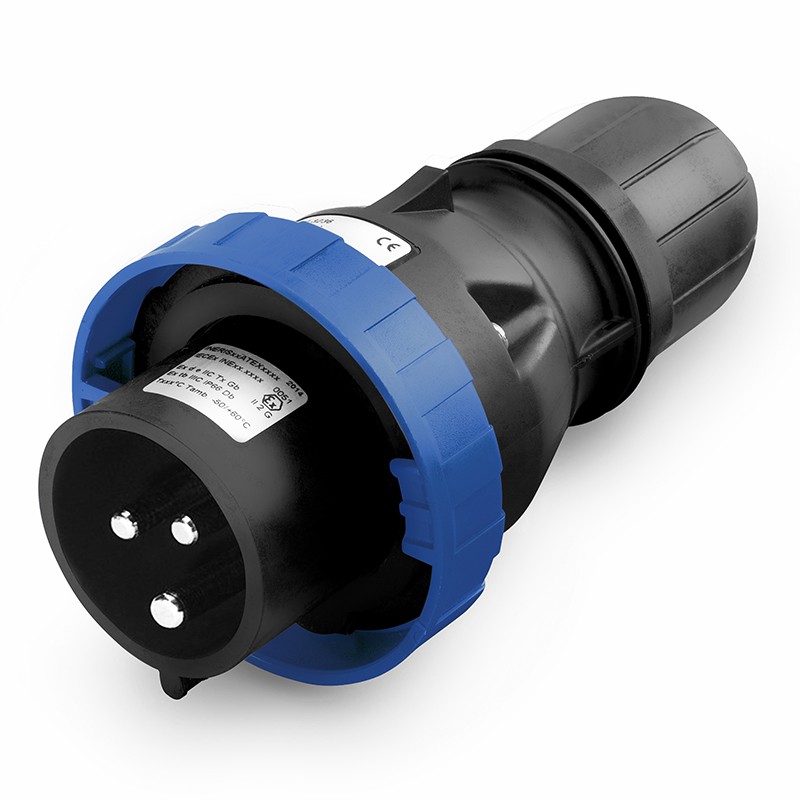

219.3234 SCAME PLUG 32A 3P+E 9h 200-250V 50Hz 60Hz View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

219.3234 SCAME PLUG 32A 3P+E 9h 200-250V 50Hz 60Hz

219.3234

SCAME

PLUG 32A 3P+E 9h 200-250V 50Hz 60Hz

AERIAL PLUG 3P+T IP66 32A 9h EX ZONE1

32A 3P+E 9h 200-250V 50Hz 60Hz II 2GD Screw terminals Low temperature [-50°C]

More details


Industrial socket/plug applications > Explosion proof CEE socket outlet

Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

Total: $146.68
Unit price: $146.68
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

Best sellers

More info



Material series
OPTIMA-EX[GD] Series
Synthetical description
PLUG
Mounting version
PORTABLE
Rated current
32A
Poles
3P+E
Hour position
9h
Rated voltage (range)
200-250V
Rated voltage
200-250V
Working frequency
50Hz
60Hz
Colour
BLUE
Material
THERMOPLASTIC
Protection degree
Splash proof
Protection degree IP
IP66
Types of available outlets
STRAIGHT
Terminals
Screw terminals
Contact material
CuZn (brass)
Surface treatment contacts
Nickel-plated
Cable entry
CABLE GLAND
Group and categories EX
II 2GD
Ambient temperature Ta min
-50 °C
Ambient temperature Ta max
60 °C
Options
Low temperature [-50°C]
Catalogue notes


Datasheet - PDF
