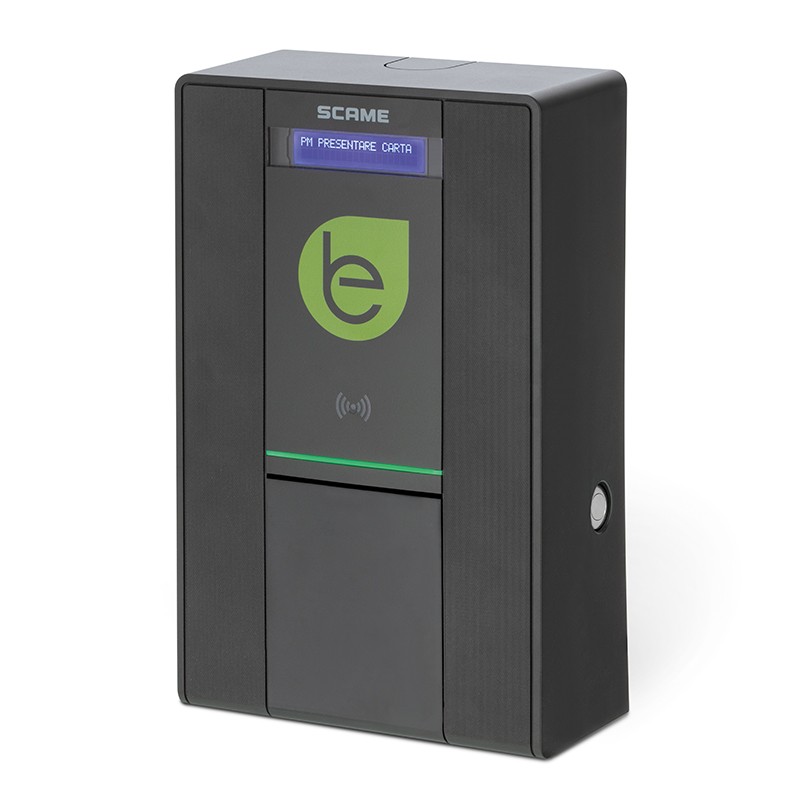

205.W76-B0 SCAME WALL BOX 1 SOCKET TYPE 2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

205.W76-B0 SCAME WALL BOX 1 SOCKET TYPE 2

205.W76-B0

SCAME

WALL BOX 1 SOCKET TYPE 2

Type 2 1P+N+E 32A 230V~ 7,4kW 32A 230V 1P+N+E IP54 IK08 OCPP 1.6 JSON

More details


Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
BE-W Series
Synthetical description
WALL BOX 1 SOCKET TYPE 2
Material
ENGINEERING PLASTIC
Rated current
32A
Rated voltage
230V
Working frequency
50/60Hz
Poles
1P+N+E
Protection degree IP
IP54
Working temperature
-30°C/+50°C
GLOW WIRE
GW 650°C
Protection degree IK
IK08
Colour
ANTHRACITE
Saline solution
Resistant
UV protection
UV resistant
Mounting version
SURFACE MOUNTING
Dimensions
235x370x115mm

Version
PRO
EV standard
Type 2 1P+N+E 32A 230V~ 7,4kW
HMI (Human-Machine Interfaces)
LCD 2x20 char
User authentication
RFID authentication
Connectivity
Ethernet
WiFi
GSM
Communication protocol
OCPP 1.6 JSON
EV functions
charge in mode 3 with pwm circuit pilot
predisposition for serial communication
energy metering and current consumption
identification of authorized user
working in mode stand-alone free or personal
protection against direct contact Safety Child Shutters
charge managing in case of power outage
identification of connected cord-set size
interfacing with OCPP Central Station
managing of latching system
wireless connection to web
POWER MANAGEMENT function (automatic modulation of charge current depending contractual power and power used by house).
EV equipment
1 backup battery
1 power supply 24Vdc 36W
1 fuse holder 1P+N gG 4A
1 DC Leakage detector
1 control card
1 RBG led stripes
1 stop charge push-button (mode free)
1 lcd display 2x20 rows backlight
1 reader RFID 13,56MHz
1 local server wired with OCPP 1.6J protocol
1 modular contactor 2P 40A 24Vdc
1 digital energy meter 1P+N 40A
1 router Wi-Fi/4G
1 terminal strip 3x10mm²
1 digital energy meter 1P+N 63/80/100A (external)
EV excluded
upstream protections (by the installer):
1 circuit breaker 1P+N C40 30mA ist. A
EV specifications
Wall mounting box in thermoplastic material halogen free resistant to impact and UV rays.<br> Equipped with:<br> 1 socket Type 2 in compliance with IEC/EN 62196-2 for mode 3 charging in compliance with IEC/EN 61851-1, equipped with shutter protection (IPXXD degree of protection without any additional devides), plug latching system to avoid unintetional withdraw under load, maximum supply current 32A single-phase 230Vac (7,4kW).<br> Automatic modulation of charge current depending contractual power and power used by house.<br> Complete with:<br> Digital meter for the measurement of the energy delivered and the control of current cosumption.<br> «DC Leakage» devices for detection of contiunuos earth leakage current (>=6 mA).<br> «Save Unlock» system to ensure the possibility of extracting the connector in the event of a blackout.<br> RFID reader for user identification and management of the charge, working in FREE or PERSONAL stand-alone mode.<br> LCD backlit display 2x20 character, for messages and diagnostic management with the possibility to change the language through the button.<br> Push button for display language changing and STOP to end the charge and allow plug extraction in FREE mode.<br> Set up for communication over RS485 serial line (NET mode with management via server).<br> Remote control by local server wired connectable to Central Station with OCPP 1.6J protocol.<br> Wireless connection to web by router Wi-Fi/4G.<br> Provide suitable upstream protection designed on load and line length.<br> Operating temperature -30°C to +50°C.<br> Impact resistance IK08.<br> Enclosure with IP54 degree of protection.<br> Compliant with CEI EN 61851-1, CEI EN 62196-2, CEI EN 61439-1, CEI EN 60304-7-722 standards and complete with CE marking.<br>
