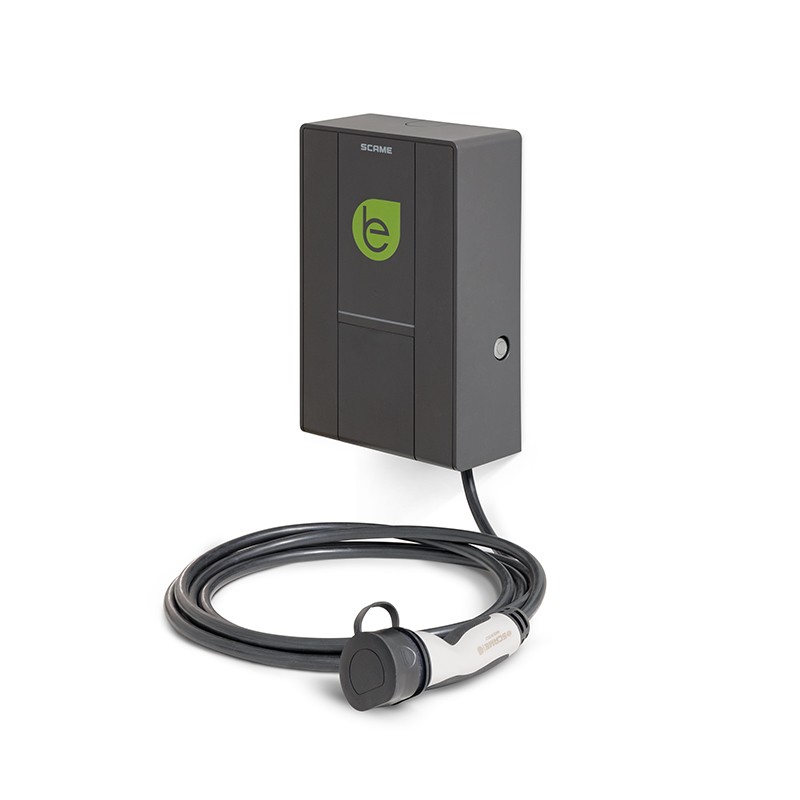

205.W75-U0 SCAME WALL BOX CABLE+T2 JACK View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

205.W75-U0 SCAME WALL BOX CABLE+T2 JACK

205.W75-U0

SCAME

WALL BOX CABLE+T2 JACK

Type 2 3P+N+E 32A 400V~ 22kW 32A 400V 3P+N+E IP54 IK08 Type 2 4m OCPP 1.6 JSON

More details


Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
BE-W Series
Synthetical description
WALL BOX CABLE+SOCKET T2
Material
ENGINEERING PLASTIC
Cable length
4m
Cable section
5G6+1x0,5mm²
Rated current
32A
Rated voltage
400V
Working frequency
50/60Hz
Poles
3P+N+E
Protection degree IP
IP54
Working temperature
-30°C/+50°C
GLOW WIRE
GW 650°C
Protection degree IK
IK08
Colour
ANTHRACITE
Saline solution
Resistant
UV protection
UV resistant
Mounting version
SURFACE MOUNTING
Dimensions
235x370x115mm
Catalogue notes
Complete with cable support.

Version
PRO
EV standard
Type 2 3P+N+E 32A 400V~ 22kW
With integrated cable
Type 2
HMI (Human-Machine Interfaces)
LCD 2x20 char
User authentication
RFID authentication
Connectivity
Ethernet
WiFi
GSM
Communication protocol
OCPP 1.6 JSON
EV functions
charge in mode 3 with pwm circuit pilot
predisposition for serial communication
energy metering and current consumption
identification of authorized user
working in mode stand-alone free or personal
power contactor aperture monitoring
interfacing with OCPP Central Station
wireless connection to web
EV equipment
1 power supply 24Vdc 36W
1 fuse holder 1P+N gG 4A
1 DC Leakage detector
1 control card
1 stop charge push-button (mode free)
1 lcd display 2x20 rows backlight
1 RBG led stripes
1 reader RFID 13,56MHz
1 local server wired with OCPP 1.6J protocol
1 modular contactor 4P 40A 24Vdc
1 cable holder in technopolymer
1 router Wi-Fi/4G
1 digital energy meter 3P+N 80A
1 cable 5G6+1x0,5mm² 4m
1 terminal strip 5x10mm²
EV excluded
upstream protections (by the installer):
1 circuit breaker 3P+N C40 30mA ist. A
1 shunt trip release 24Vdc
EV specifications
Wall mounting box in thermoplastic material halogen free resistant to impact and UV rays.<br> Equipped with:<br> 1 connector Type 2 in compliance with IEC/EN 62196-2 for mode 3 charging and case C (mobile connector with cable) in compliance with IEC/EN 61851-1, maximum supply current 32A three-phase 400Vac (22kW).<br> Complete with:<br> Digital meter for the measurement of the energy delivered and the control of current cosumption.<br> Control system for power contactor aperture monitoring.<br> «DC Leakage» devices for detection of contiunuos earth leakage current (>=6 mA).<br> RFID reader for user identification and management of the charge, working in FREE or PERSONAL stand-alone mode.<br> LCD backlit display 2x20 character, for messages and diagnostic management with the possibility to change the language through the button.<br> Push button for display language changing and STOP to end the charge and allow plug extraction in FREE mode.<br> Remote control by local server wired connectable to Central Station with OCPP 1.6J protocol.<br> Wireless connection to web by router Wi-Fi/4G.<br> Provide suitable upstream protection designed on load and line length.<br> Operating temperature -30°C to +50°C.<br> Impact resistance IK08.<br> Enclosure with IP54 degree of protection.<br> Compliant with CEI EN 61851-1, CEI EN 62196-2, CEI EN 61439-1, CEI EN 60304-7-722 standards and complete with CE marking.<br>
