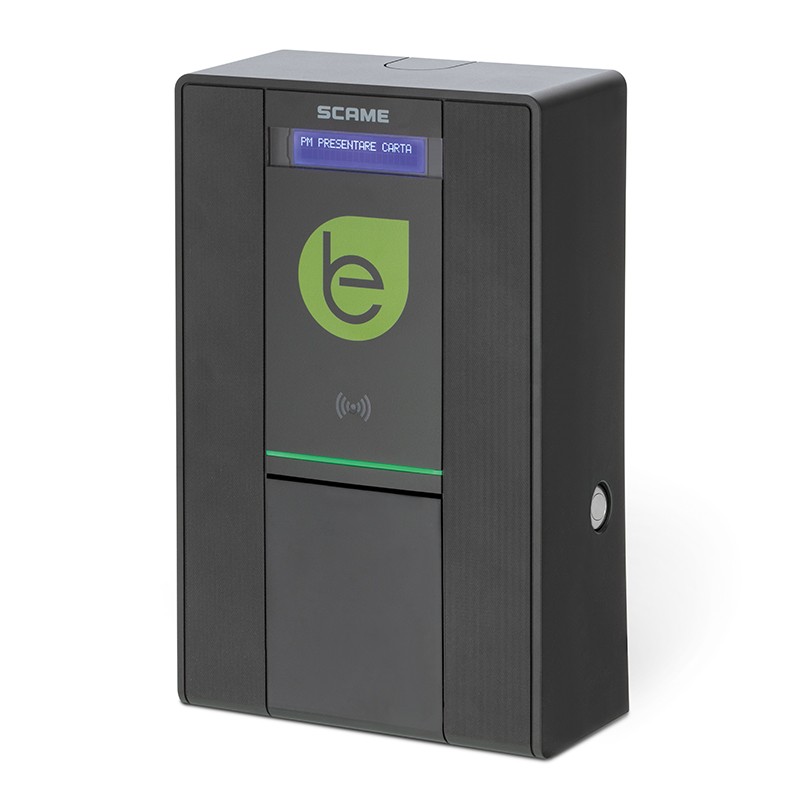

205.W37-D0 SCAME WALL BOX 1 SOCKET TYPE 2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

205.W37-D0 SCAME WALL BOX 1 SOCKET TYPE 2

205.W37-D0

SCAME

WALL BOX 1 SOCKET TYPE 2

Type 2 3P+N+E 32A 400V~ 22kW 32A 400V 3P+N+E IP54 IK08

More details


Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

Total: $1,335.23
Unit price: $1,335.23
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
BE-W Series
Synthetical description
WALL BOX 1 SOCKET TYPE 2
Material
ENGINEERING PLASTIC
Rated current
32A
Rated voltage
400V
Working frequency
50/60Hz
Poles
3P+N+E
Protection degree IP
IP54
Working temperature
-30°C/+50°C
GLOW WIRE
GW 650°C
Protection degree IK
IK08
Colour
ANTHRACITE
Saline solution
Resistant
UV protection
UV resistant
Mounting version
SURFACE MOUNTING
Dimensions
235x370x115mm

Version
BUSINESS
EV standard
Type 2 3P+N+E 32A 400V~ 22kW
HMI (Human-Machine Interfaces)
LCD 2x20 char
User authentication
RFID authentication
Connectivity
None
EV functions
charge in mode 3 with pwm circuit pilot
predisposition for serial communication
energy metering and current consumption
identification of authorized user
protection against direct contact Safety Child Shutters
working in mode stand-alone free or personal
charge managing in case of power outage
identification of connected cord-set size
managing of latching system
EV equipment
1 backup battery
1 power supply 24Vdc 36W
1 DC Leakage detector
1 fuse holder 1P+N gG 4A
1 control card
1 stop charge push-button (mode free)
1 RBG led stripes
1 lcd display 2x20 rows backlight
1 reader RFID 13,56MHz
1 modular contactor 4P 40A 24Vdc
1 digital energy meter MID 3P+N 80A
1 terminal strip 5x10mm²
EV excluded
upstream protections (by the installer):
1 circuit breaker 3P+N C40 30mA ist. A

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
205.W37-D0 205.W37-D0 EN_205.W37-D0.pdf 43 Kbytes 205.W37-D0 205.W37-D0 EN_205.W37-D0.pdf
Download general catalog Download general catalog
