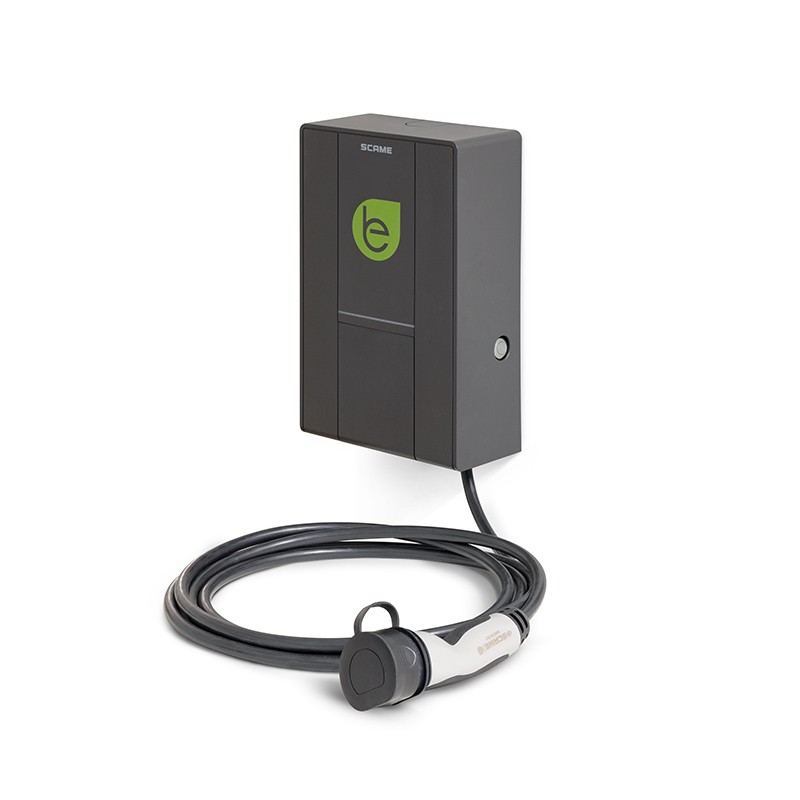

205.W35-S0 SCAME WALL BOX CABLE+T2 JACK View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

205.W35-S0 SCAME WALL BOX CABLE+T2 JACK

205.W35-S0

SCAME

WALL BOX CABLE+T2 JACK

Type 2 1P+N+E 32A 230V~ 7,4kW 32A 230V 1P+N+E IP54 IK08 Type 2 4m

More details


Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

Total: $1,175.48
Unit price: $1,175.48
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
BE-W Series
Synthetical description
WALL BOX CABLE+SOCKET T2
Material
ENGINEERING PLASTIC
Cable length
4m
Cable section
3G6+1x0,5mm²
Rated current
32A
Rated voltage
230V
Working frequency
50/60Hz
Poles
1P+N+E
Protection degree IP
IP54
Working temperature
-30°C/+50°C
GLOW WIRE
GW 650°C
Protection degree IK
IK08
Colour
ANTHRACITE
Saline solution
Resistant
UV protection
UV resistant
Mounting version
SURFACE MOUNTING
Dimensions
235x370x115mm
Catalogue notes
Complete with cable support.

Version
BUSINESS
EV standard
Type 2 1P+N+E 32A 230V~ 7,4kW
With integrated cable
Type 2
HMI (Human-Machine Interfaces)
LCD 2x20 char
User authentication
RFID authentication
Connectivity
None
EV functions
charge in mode 3 with pwm circuit pilot
predisposition for serial communication
identification of authorized user
working in mode stand-alone free or personal
power contactor aperture monitoring
current consuption metering
EV equipment
1 modular contactor 2P 40A 24Vdc
1 power supply 24Vdc 36W
1 DC Leakage detector
1 fuse holder 1P+N gG 4A
1 control card
1 stop charge push-button (mode free)
1 RBG led stripes
1 lcd display 2x20 rows backlight
1 reader RFID 13,56MHz
1 cable holder in technopolymer
1 terminal strip 3x10mm²
1 current transformer
1 cable 3G6+1x0,5mm² 4m
EV excluded
upstream protections (by the installer):
1 circuit breaker 1P+N C40 30mA ist. A
1 shunt trip release 24Vdc
EV specifications
Wall mounting box in thermoplastic material halogen free resistant to impact and UV rays.<br> Equipped with:<br> 1 connector Type 2 in compliance with IEC/EN 62196-2 for mode 3 charging and case C (mobile connector with cable) in compliance with IEC/EN 61851-1, maximum supply current 32A single-phase 230Vac (7,4kW).<br> Complete with:<br> Current tranfromer for the control of current cosumption.<br> Control system for power contactor aperture monitoring.<br> «DC Leakage» devices for detection of contiunuos earth leakage current (>=6 mA).<br> RFID reader for user identification and management of the charge, working in FREE or PERSONAL stand-alone mode.<br> LCD backlit display 2x20 character, for messages and diagnostic management with the possibility to change the language through the button.<br> Push button for display language changing and STOP to end the charge and allow plug extraction in FREE mode.<br> Set up for communication over RS485 serial line (NET mode with management via server).<br> Provide suitable upstream protection designed on load and line length.<br> Operating temperature -30°C to +50°C.<br> Impact resistance IK08.<br> Enclosure with IP54 degree of protection.<br> Compliant with CEI EN 61851-1, CEI EN 62196-2, CEI EN 61439-1, CEI EN 60304-7-722 standards and complete with CE marking.<br>
