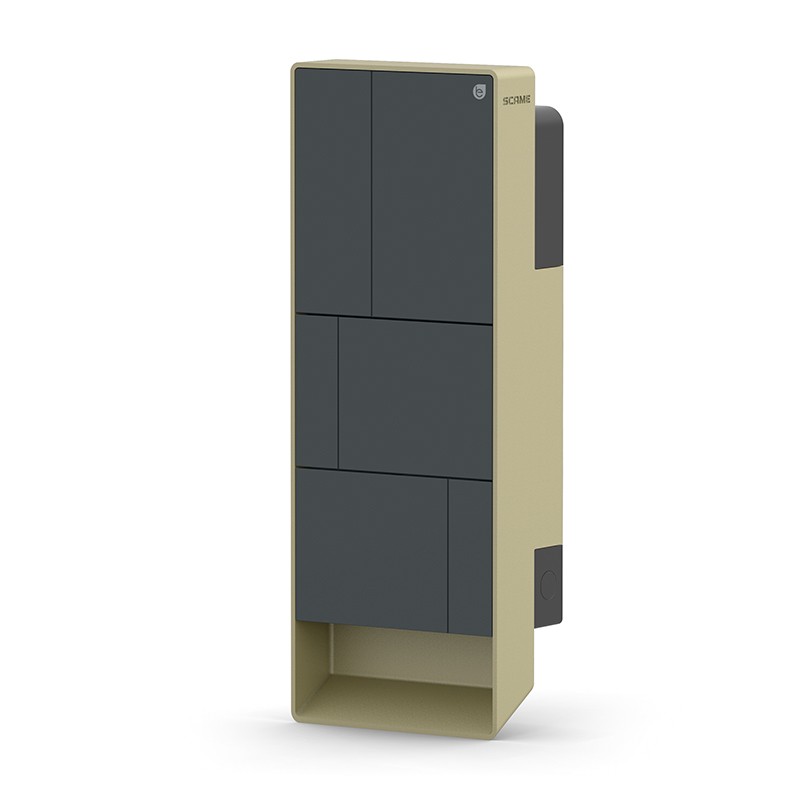

205.T113-BCB SCAME WALL BOX BE-T APP+PROTECTIONS
205.T113-BCB
SCAME
WALL BOX BE-T APP+PROTECTIONS
Type 2 1P+N+E 32A 230V~ 7,4kW 32A 230V 1P+N+E IP54 IK09
Home > SCAME
* Brand new product in its original packaging covered by the warranties and certifications provided by SCAME
Related products
▲Best sellers
▲More info
▲Material series
BE-T Series
Synthetical description
WALL BOX 1 SOCKET TYPE 2
Material
ENGINEERING PLASTIC
Rated current
32A
Rated voltage
230V
Working frequency
50/60Hz
Poles
1P+N+E
Protection degree IP
IP54
Working temperature
-30°C/+50°C
GLOW WIRE
GW 650°C
Protection degree IK
IK09
Colour
ANTHRACITE
Saline solution
Resistant
UV protection
UV resistant
Mounting version
SURFACE MOUNTING
Dimensions
245x660x120mm
Version
LITE
EV standard
Type 2 1P+N+E 32A 230V~ 7,4kW
HMI (Human-Machine Interfaces)
APP
User authentication
Free
Connectivity
None
Communication protocol
Not provided
EV functions
charge in mode 3 with pwm circuit pilot
predisposition for serial communication
energy metering and current consumption
protection against direct contact Safety Child Shutters
charge managing in case of power outage
identification of connected cord-set size
protection against overcurrents and electric shock
working in mode stand-alone free
managing of latching system
EV equipment
1 fuse holder 1P+N gG 4A
1 power supply 24Vdc 36W
1 DC Leakage detector
1 RBG led stripes
1 backup battery
1 painted metallic frame
1 modular contactor 2P 40A 24Vdc
1 terminal strip 5x16mm²
1 digital energy meter 1P+N 40A
1 circuit breaker 1P+N C40 30mA ist. A
EV specifications
Wall mounting box in thermoplastic material halogen free resistant to impact and UV rays.<br> Equipped with:<br> 1 socket Type 2 in compliance with IEC/EN 62196-2 for mode 3 charging in compliance with IEC/EN 61851-1, equipped with shutter protection (IPXXD degree of protection without any additional devides), plug latching system to avoid unintetional withdraw under load, maximum supply current 32A single-phase 230Vac (7,4kW).<br> Complete with:<br> Automatic and residual current device for protection against over currents and indirect contact.<br> «DC Leakage» devices for detection of contiunuos earth leakage current (>=6 mA).<br> «Save Unlock» system to ensure the possibility of extracting the connector in the event of a blackout.<br> Set up for communication over RS485 serial line (NET mode with management via server).<br> Wireless connection to the web via Wi-Fi module.<br> Remote control with smartphone APP.<br> Operating temperature -30°C to +50°C.<br> Impact resistance IK09.<br> Enclosure with IP54 degree of protection.<br> Front side customizable with color printer and painted metal frame.<br> Compliant with CEI EN 61851-1, CEI EN 62196-2, CEI EN 61439-1 and complete with CE marking.<br>
