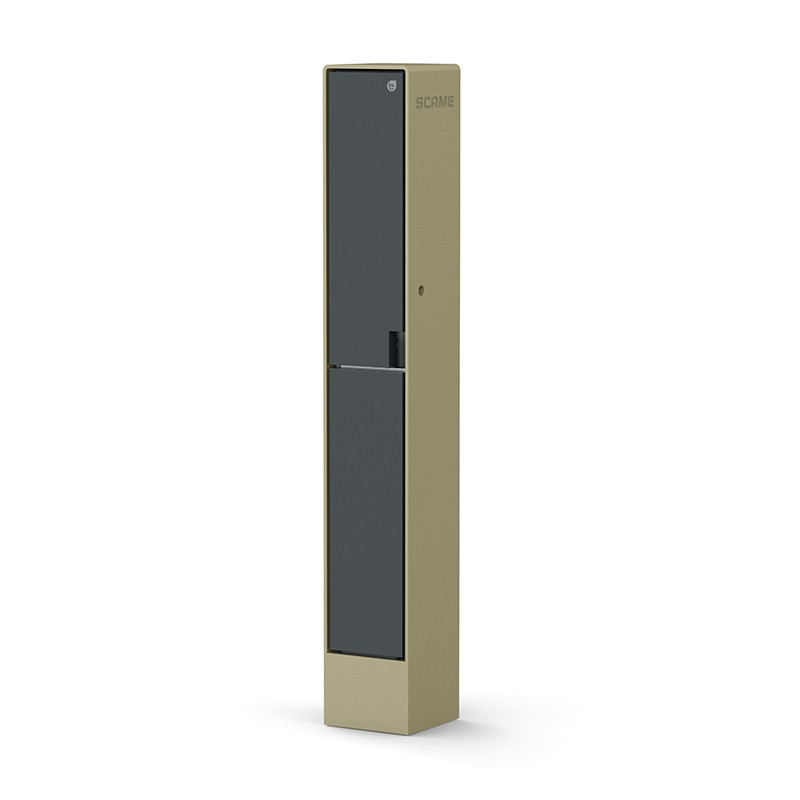

205.KA09-K SCAME BE-K P40 COLUMN 3.7kW BASIC
205.KA09-K
SCAME
BE-K P40 COLUMN 3.7kW BASIC
P40 2P+E 16A 230V~ 3,7kW 16A 230V 1P+N+E IP44 IK10
Home > SCAME
* Brand new product in its original packaging covered by the warranties and certifications provided by SCAME
Related products
▲Best sellers
▲More info
▲Material series
BE-K Series
Synthetical description
PILLAR BE-K
Material
VARNISHED METAL
Rated current
16A
Rated voltage
230V
Working frequency
50/60Hz
Poles
1P+N+E
Protection degree IP
IP44
Working temperature
-30°C/+50°C
Protection degree IK
IK10
Colour
BRONZE
Saline solution
Resistant
UV protection
UV resistant
Mounting version
ON TURRET
Dimensions
135x135x900mm
Version
SOLO
EV standard
P40 2P+E 16A 230V~ 3,7kW
HMI (Human-Machine Interfaces)
None
User authentication
Free
Connectivity
None
Communication protocol
Not provided
EV functions
protection against overcurrents and electric shock
protection against direct contact Safety Child Shutters
working in mode stand-alone free
EV equipment
1 base with separation chamber
1 power supply 24Vdc 36W
1 fuse holder 1P+N gG 4A
1 terminal strip 3x10mm²
1 circuit breaker 1P+N D20 30mA ist. A
1 modular contactor 2P 25A 24Vdc
EV specifications
Pillar in painted galvanized steel prepared for floor installation with basement with function of anti-condensation separation room.<br> Equipped with:<br> 2 P40 sockets type (domestic) for mode 1 charging in compliance with IEC/EN 61851-1, equipped with shutter protection (IPXXD degree of protection without any additional devides), maximum supply current 16A single-phase 230Vac (3,7kW), the use of this socket is allowed only in areas where is not compulsory the mode 3.<br> Complete with:<br> Automatic and residual current device for protection against over currents and indirect contact.<br> Door locking system with key Operating temperature -30°C to +50°C.<br> Impact resistance IK10.<br> Enclosure with IP44 degree of protection.<br> Compliant with EN 61439-3 standards and complete with CE marking.<br> Color BE-BRONZE
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SCAME EN.pdf | 19 Mbytes |
|
| Download general catalog |
|
