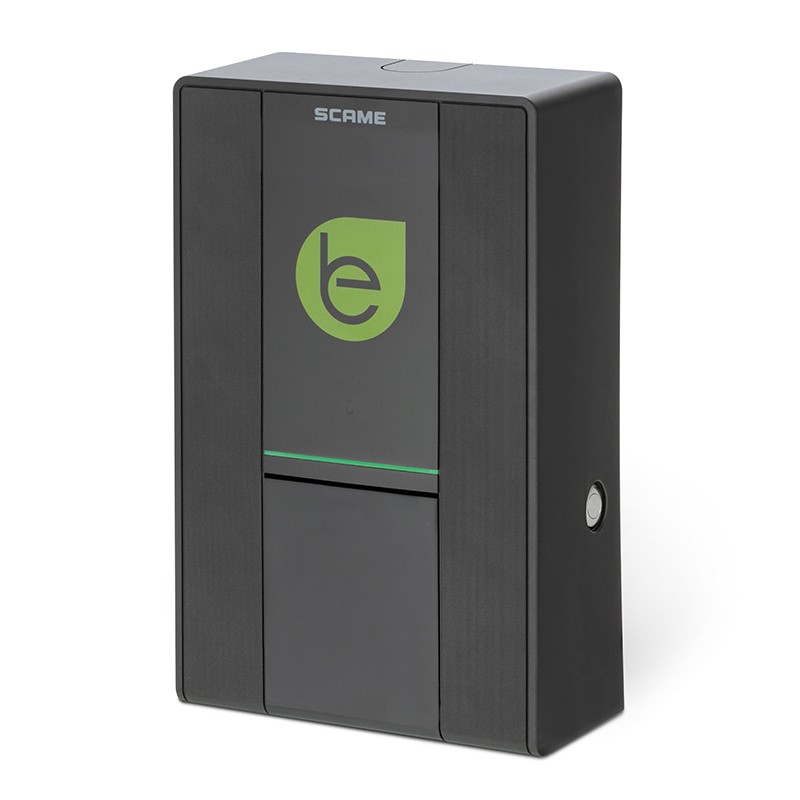

205.EVW19-B0 SCAME WALLBOX BE-W 1 SOCKET T2 7.4kW EVREADY View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

205.EVW19-B0 SCAME WALLBOX BE-W 1 SOCKET T2 7.4kW EVREADY

205.EVW19-B0

SCAME

WALLBOX BE-W 1 SOCKET T2 7.4kW EVREADY

Type 2 1P+N+E 32A 230V~ 7,4kW 32A 230V 1P+N+E IP54 IK08

More details


Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

Total: $1,090.40
Unit price: $1,090.40
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
BE-W Series
Synthetical description
WALL BOX 1 SOCKET TYPE 2
Material
ENGINEERING PLASTIC
Rated current
32A
Rated voltage
230V
Working frequency
50/60Hz
Poles
1P+N+E
Protection degree IP
IP54
Working temperature
-25°C/+40°C
GLOW WIRE
GW 650°C
Protection degree IK
IK08
Colour
ANTHRACITE
Saline solution
Resistant
UV protection
UV resistant
Mounting version
SURFACE MOUNTING
Dimensions
235x370x115mm

Version
SOLO
EV standard
Type 2 1P+N+E 32A 230V~ 7,4kW
EV functions
charge in mode 3 with pwm circuit pilot
energy metering and current consumption
protection against direct contact Safety Child Shutters
identification of connected cord-set size
power contactor aperture monitoring
working in mode stand-alone free
managing of latching system
EV equipment
1 terminal strip 3x10mm²
1 power supply 24Vdc 36W
1 fuse holder 1P+N gG 4A
1 control card
1 stop charge push-button (mode free)
1 couple of service led
1 digital energy meter 1P+N 45A
1 industrial contactor 2P 32A 24Vdc
EV excluded
upstream protections (by the installer):
1 circuit breaker RCD Type B
1 shunt trip release 24Vdc
emergency line 24Vdc (optional)
1 circuit breaker 1P+N C40 30mA
EV specifications
Wall mounting box in thermoplastic material halogen free resistant to impact and UV rays.<br> Equipped with:<br> 1 socket Type 2 in compliance with IEC/EN 62196-2 for mode 3 charging in compliance with IEC/EN 61851-1, equipped with shutter protection (IPXXD degree of protection without any additional devides), plug latching system to avoid unintetional withdraw under load, maximum supply current 32A single-phase 230Vac (7,4kW).<br> Complete with:<br> Digital meter for the measurement of the energy delivered and the control of current cosumption.<br> Push button for display language changing and STOP to end the charge and allow plug extraction in FREE mode.<br> Provide suitable upstream protection designed on load and line length.<br> Operating temperature -25°C to +40°C.<br> Impact resistance IK08.<br> Enclosure with IP54 degree of protection.<br> Compliant with CEI EN 61851-1, CEI EN 62196-2, CEI EN 61439-7, CEI EN 60304-7-722 standards and complete with CE marking.

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
205.EVW19-B0 205.EVW19-B0 EN_205.EVW19-B0.pdf 42 Kbytes 205.EVW19-B0 205.EVW19-B0 EN_205.EVW19-B0.pdf
Download general catalog Download general catalog
