> SCAME>205.B52-SS SCAME COLUMN BE-B 2 CONNECT. T2 7.4kW LCD NET
Previous Product Next Product

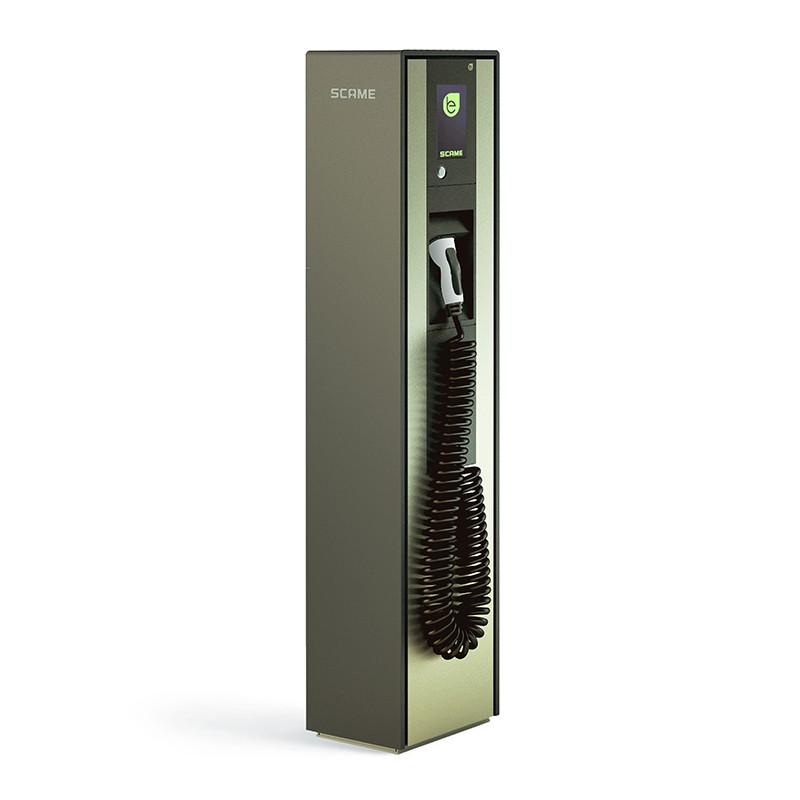

205.B52-SS SCAME COLUMN BE-B 2 CONNECT. T2 7.4kW LCD NET View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

205.B52-SS SCAME COLUMN BE-B 2 CONNECT. T2 7.4kW LCD NET

205.B52-SS

SCAME

COLUMN BE-B 2 CONNECT. T2 7.4kW LCD NET

Type 2 1P+N+E 32A 230V~ 7,4kW 32A 400V 3P+N+E IP54 IK10 Type 2 4m SPIRAL OCPP 1.6 JSON 2x7,4kW (32A)

More details


Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
BE-B Series
Synthetical description
PILLAR BE-B
Material
VARNISHED METAL
Output
2x7,4kW (32A)
Cable length
4m
Cable section
3G6+1x0,5mm²
Cable
SPIRAL
Rated current
32A
Rated voltage
400V
Working frequency
50/60Hz
Poles
3P+N+E
Protection degree IP
IP54
Working temperature
-30°C/+50°C
Protection degree IK
IK10
Colour
BRONZE
Saline solution
Resistant
UV protection
UV resistant
Mounting version
ON TURRET
Dimensions
300x1466x300mm

Version
PRO
EV standard
Type 2 1P+N+E 32A 230V~ 7,4kW
With integrated cable
Type 2
HMI (Human-Machine Interfaces)
LCD 2x20 char
User authentication
RFID authentication
Connectivity
Ethernet
Communication protocol
OCPP 1.6 JSON
EV functions
charge in mode 3 with pwm circuit pilot
predisposition for serial communication
energy metering and current consumption
identification of authorized user
working in mode stand-alone free or personal
charge managing in case of power outage
protection against overcurrents and electric shock
interfacing with OCPP Central Station
power contactor aperture monitoring
load Balancing function
managing of connector locking in inlet dummy
EV equipment
1 base with separation chamber
1 power supply 24Vdc 36W
1 fuse holder 1P+N gG 4A
1 backup battery
1 local server wired with OCPP 1.6J protocol
2 DC Leakage detectors
2 control cards
2 lcd display 2x20 rows backlight
2 readers RFID 13,56MHz
2 stop charge push-buttons (mode free)
1 terminal strip 5x35mm²
1 main switch 4P 40A
2 modular contactors 2P 40A 24Vdc
2 circuit breakers 1P+N C40 30mA ist. A
2 shunt trip releases 24Vdc
2 digital energy meters MID 1P+N 40A
2 inlets dummy with RGB led
2 inlets dummy with RGB led
2 cables 3G6+1x0,5mm² (max extension 4m)
EV specifications
Pillar in powder paint galvanized steel with sockets located on the side and illuminated with LED frame for signaling status.<br> Prepared for floor installation with basement with function of anti-condensation separation room.<br> Equipped with:<br> 2 connectors Type 2 in compliance with IEC/EN 62196-2 for mode 3 charging and case C (mobile connector with cable) in compliance with IEC/EN 61851-1, maximum supply current 32A single-phase 230Vac (7,4kW).<br> Complete with:<br> Automatic and residual current device for protection against over currents and indirect contact.<br> Digital meter for the measurement of the energy delivered and the control of current cosumption, MID certifided<br> «DC Leakage» devices for detection of contiunuos earth leakage current (>=6 mA).<br> Backup batteries to ensure continuity of service in the case of power outage.<br> «Save Unlock» system to ensure the possibility of extracting the connector in the event of a blackout.<br> RFID reader for user identification and management of the charge, working in FREE or PERSONAL stand-alone mode.<br> LCD backlit display 2x20 character, for messages and diagnostic management with the possibility to change the language through the button.<br> Push button for display language changing and STOP to end the charge and allow plug extraction in FREE mode.<br> Remote control by local server wired connectable to Central Station with OCPP 1.6J protocol.<br> Operating temperature -30°C to +50°C.<br> Impact resistance IK10.<br> Enclosure with IP54 degree of protection.<br> Compliant with CEI EN 61851-1, CEI EN 62196-2, CEI EN 61439-1, CEI EN 60304-7-722 standards and complete with CE marking.<br> Lower part of the socket side customizable<br> Color BE-BRONZE<br>

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
205.B52-SS 205.B52-SS EN_205.B52-SS.pdf 61 Kbytes 205.B52-SS 205.B52-SS EN_205.B52-SS.pdf
Download general catalog Download general catalog
