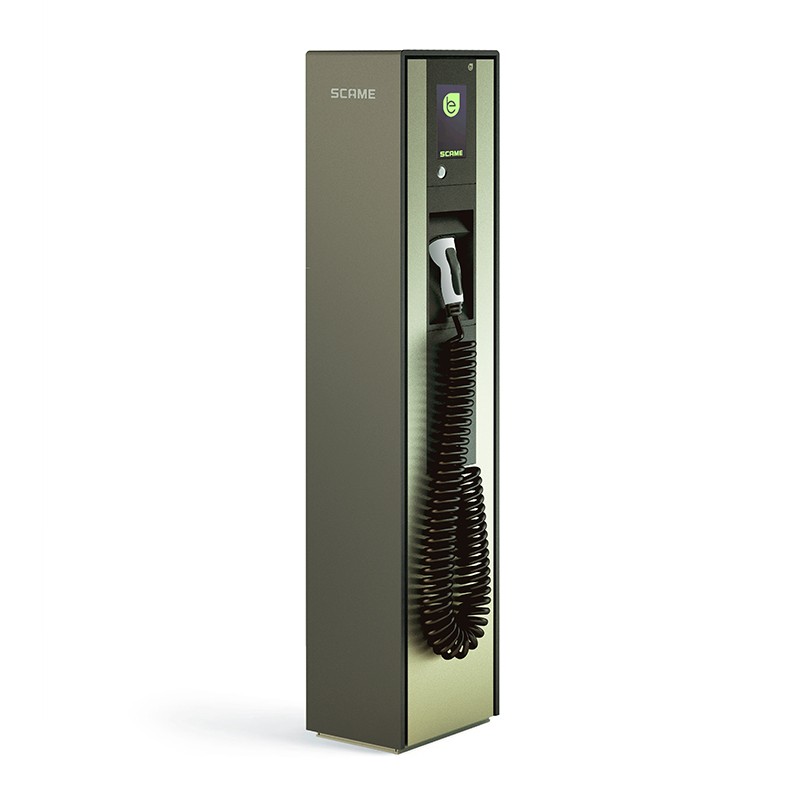

205.B33-UU SCAME COLUMN BE-B 2 CONNECTORS T2 22kW LCD
205.B33-UU
SCAME
COLUMN BE-B 2 CONNECTORS T2 22kW LCD
PILLAR BE-B
Home > SCAME
* Brand new product in its original packaging covered by the warranties and certifications provided by SCAME
Best sellers
▲More info
▲Commercial series
BE-B Series
Synthetical description
PILLAR BE-B
Material
VARNISHED METAL
EV standard
Type 2 3P+N+E 32A 400V~ 22kW
With integrated cable
Type 2
Cable length
4m
Cable section
5G6+1x0,5mm²
Cable
SPIRAL
Rated current
63A
Rated voltage
400V
Working frequency
50/60Hz
Poles
3P+N+E
Protection degree IP
IP54
Working temperature
-30°C/+50°C
Protection degree IK
IK10
Colour
BRONZE
Mounting version
ON TURRET
Dimensions
300x1466x300mm
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SCAME EN.pdf | 19 Mbytes |
|
| 205.B33-UU 205.B33-UU EN_205.B33-UU.pdf | 61 Kbytes |
|
| Download general catalog |
|
