SCAME204.WD26B-T2T2D SCAME WALL BOX 2 SOCKETS WITH LOCK

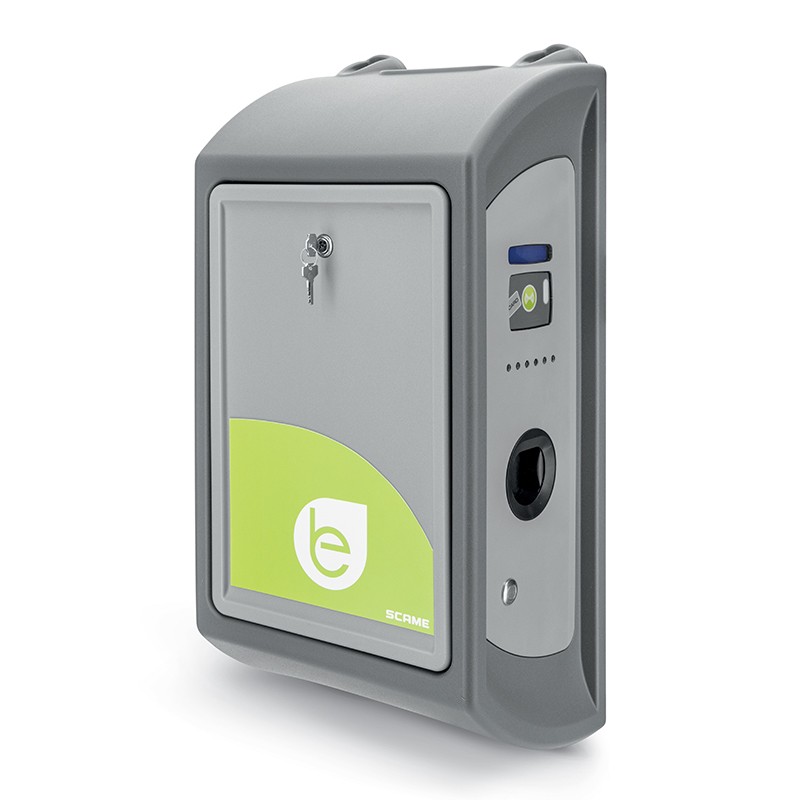

SCAME 204.WD26B-T2T2D 204.WD26B-T2T2D - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

204.WD26B-T2T2D SCAME WALL BOX 2 SOCKETS WITH LOCK

Reference: 204.WD26B-T2T2D

Manufacturer: SCAME

Description:

WALL BOX 2 SOCKETS WITH LOCK
Type 2 3P+N+E 32A 400V~ 22kW 63A 400V 3P+N+E IP54 IK10

Categories:

  • SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • Reviews
Guarantee, repair and return.

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Commercial Series
WD Series
Synthetical description
WALL BOX 2 SOCKETS WITH LOCK
Material
ENGINEERING PLASTIC
Rated current
63A
Rated voltage
400V
Working frequency
50/60Hz
Poles
3P+N+E
Protection degree IP
IP54
Working temperature
-30°C/+50°C
GLOW WIRE
GW 650°C
Protection degree IK
IK10
Colour
GREY
Saline solution
Resistant
UV protection
UV resistant
Mounting version
SURFACE MOUNTING
Dimensions
360x780x264mm

Version
PRO
EV standard
Type 2 3P+N+E 32A 400V~ 22kW
