> SCAME>204.WD26B-T2T2A SCAME WALL BOX 2 SOCKETS WITH LOCK
Previous Product Next Product

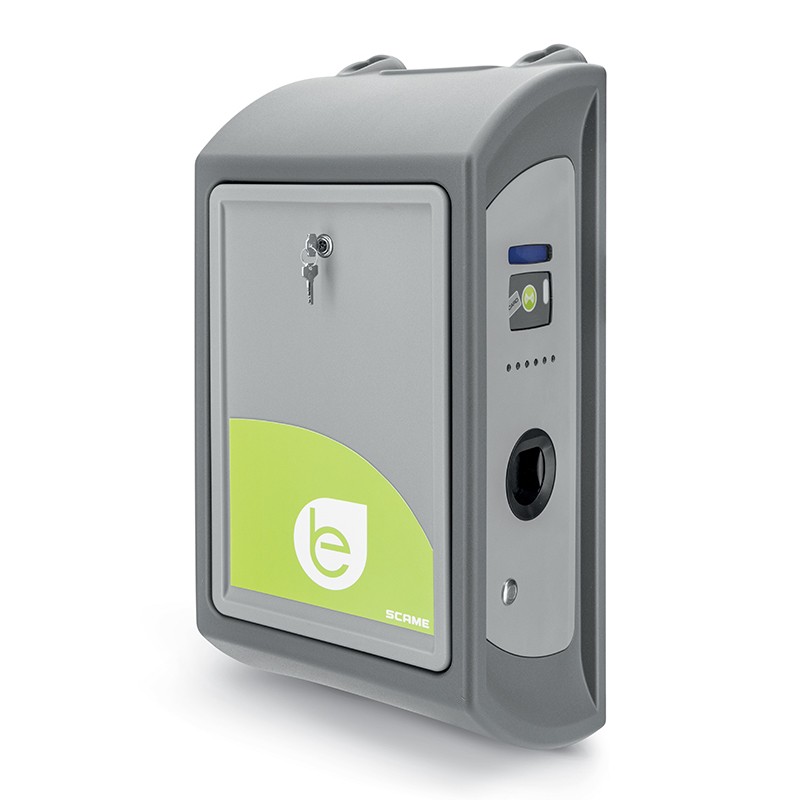

204.WD26B-T2T2A SCAME WALL BOX 2 SOCKETS WITH LOCK View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

204.WD26B-T2T2A SCAME WALL BOX 2 SOCKETS WITH LOCK

204.WD26B-T2T2A

SCAME

WALL BOX 2 SOCKETS WITH LOCK

WALL BOX 2 OUTLETS, Type 2 3P+N+T 32A 400V~ 22kW 32A 400V 3P+N+T-IP54 IK10 With RFID identification

Type 2 3P+N+E 32A 400V~ 22kW 32A 400V 3P+N+E IP54 IK10 OCPP 1.6 JSON

More details


Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
WD Series
Synthetical description
WALL BOX 2 SOCKETS WITH LOCK
Material
ENGINEERING PLASTIC
Rated current
32A
Rated voltage
400V
Working frequency
50/60Hz
Poles
3P+N+E
Protection degree IP
IP54
Working temperature
-30°C/+50°C
GLOW WIRE
GW 650°C
Protection degree IK
IK10
Colour
GREY
Saline solution
Resistant
UV protection
UV resistant
Mounting version
SURFACE MOUNTING
Dimensions
360x780x264mm

Version
PRO
EV standard
Type 2 3P+N+E 32A 400V~ 22kW
HMI (Human-Machine Interfaces)
LCD 2x20 char
User authentication
RFID authentication
Connectivity
Ethernet
Communication protocol
OCPP 1.6 JSON
EV functions
charge in mode 3 with pwm circuit pilot
predisposition for serial communication
energy metering and current consumption
identification of authorized user
working in mode stand-alone free or personal
protection against direct contact Safety Child Shutters
charge managing in case of power outage
identification of connected cord-set size
protection against overcurrents and electric shock
interfacing with OCPP Central Station
managing of lid locking and latching system
load Balancing function
EV equipment
2 lighting bars with RGB led
1 power supply 24Vdc 36W
1 fuse holder 1P+N gG 4A
1 backup battery
1 local server wired with OCPP 1.6J protocol
2 DC Leakage detectors
2 control cards
2 stop charge push-buttons (mode free)
2 lcd display 2x20 rows backlight
2 readers RFID 13,56MHz
1 main switch 4P 40A
1 terminal strip 1x35mm²
2 circuit breakers 3P+N C20 30mA ist. A
2 modular contactors 4P 25A 24Vdc
2 digital energy meters 3P+N 80A

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
204.WD26B-T2T2A 204.WD26B-T2T2A EN_204.WD26B-T2T2A.pdf 43 Kbytes 204.WD26B-T2T2A 204.WD26B-T2T2A EN_204.WD26B-T2T2A.pdf
Download general catalog Download general catalog
