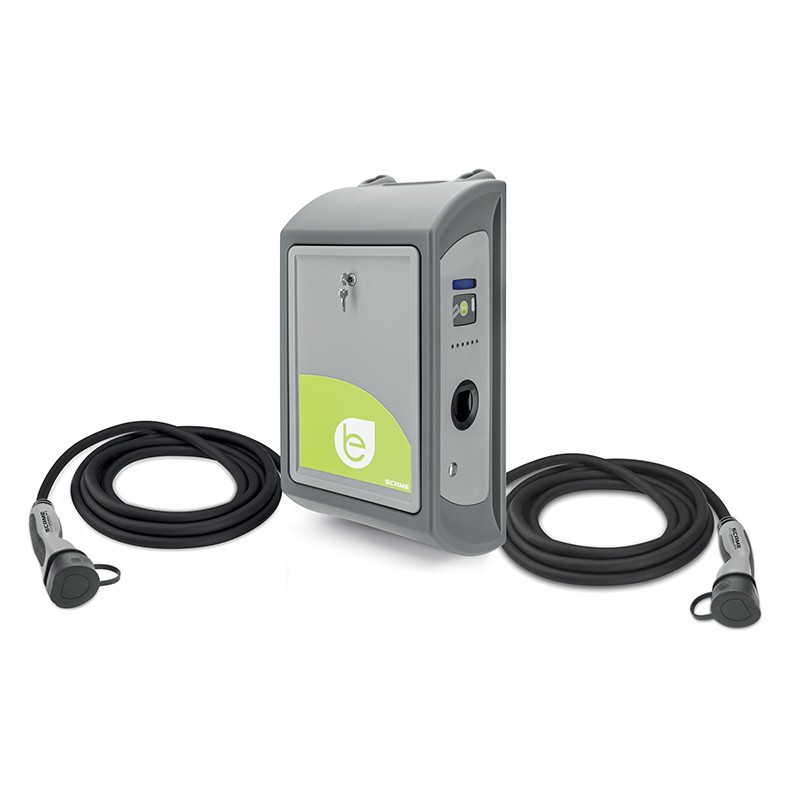

204.WD23R-T24T24 SCAME WALL BOX 2 SOCKETS WITH LOCK View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

204.WD23R-T24T24 SCAME WALL BOX 2 SOCKETS WITH LOCK

204.WD23R-T24T24

SCAME

WALL BOX 2 SOCKETS WITH LOCK

WALL BOX, 2 SOCKETS WITH CABLE, Type 2 3P+N+T 32A 400V~ 22kW 63A 400V 3P+N+T-IP54 IK10 With RFID identification

Type 2 3P+N+E 32A 400V~ 22kW 63A 400V 3P+N+E IP54 IK10 Type 2 4m

More details


Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
WD Series
Synthetical description
WALL BOX 2 SOCKETS WITH CABLE
Material
ENGINEERING PLASTIC
Cable length
4m
Cable section
5G6+1x0,5mm²
Rated current
63A
Rated voltage
400V
Working frequency
50/60Hz
Poles
3P+N+E
Protection degree IP
IP54
Working temperature
-30°C/+50°C
GLOW WIRE
GW 650°C
Protection degree IK
IK10
Colour
GREY
Saline solution
Resistant
UV protection
UV resistant
Mounting version
SURFACE MOUNTING
Dimensions
360x780x264mm

Version
BUSINESS
EV standard
Type 2 3P+N+E 32A 400V~ 22kW
With integrated cable
Type 2
HMI (Human-Machine Interfaces)
LCD 2x20 char
User authentication
RFID authentication
Connectivity
None
EV functions
charge in mode 3 with pwm circuit pilot
predisposition for serial communication
energy metering and current consumption
identification of authorized user
working in mode stand-alone free or personal
charge managing in case of power outage
protection against overcurrents and electric shock
power contactor aperture monitoring
EV equipment
2 lighting bars with RGB led
1 power supply 24Vdc 36W
1 fuse holder 1P+N gG 4A
1 backup battery
2 DC Leakage detectors
2 control cards
2 stop charge push-buttons (mode free)
2 lcd display 2x20 rows backlight
2 readers RFID 13,56MHz
1 terminal strip 1x35mm²
2 circuit breakers 3P+N C40 30mA ist. A
2 shunt trip releases 24Vdc
2 modular contactors 4P 40A 24Vdc
1 main switch 4P 80A
2 cables 5G6+1x0,5mm² 4m
2 digital energy meters 3P+N 80A

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
204.WD23R-T24T24 204.WD23R-T24T24 EN_204.WD23R-T24T24.pdf 40 Kbytes 204.WD23R-T24T24 204.WD23R-T24T24 EN_204.WD23R-T24T24.pdf
