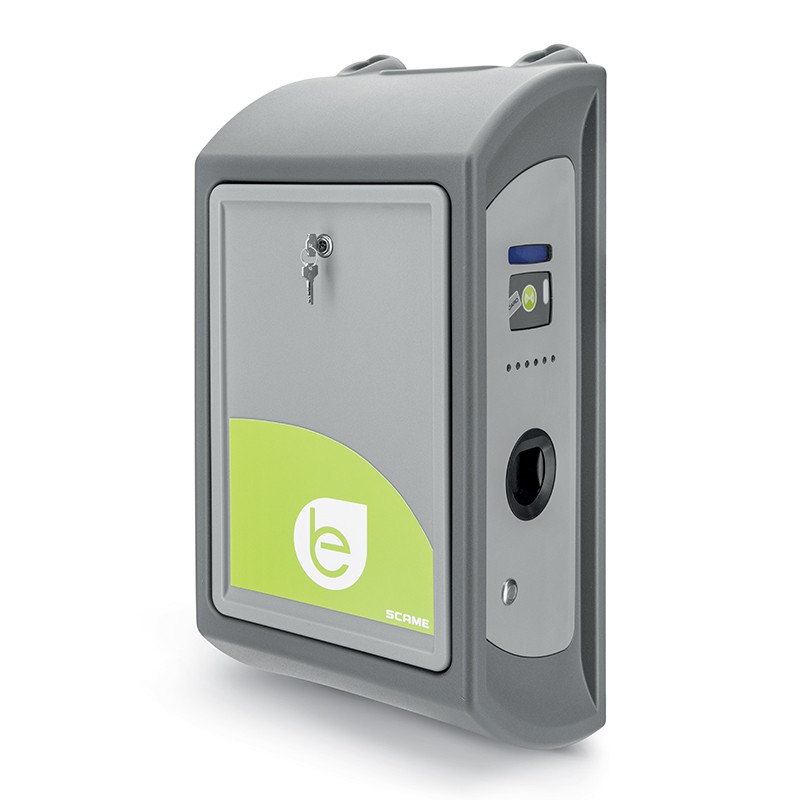

204.WD23P-T2T2 SCAME WALL BOX 2 SOCKETS TYPE 2 22kW IP54 63A View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

204.WD23P-T2T2 SCAME WALL BOX 2 SOCKETS TYPE 2 22kW IP54 63A

204.WD23P-T2T2

SCAME

WALL BOX 2 SOCKETS TYPE 2 22kW IP54 63A

Type 2 3P+N+E 32A 400V~ 22kW 63A 400V 3P+N+E IP54 IK10

More details


Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

Total: $4,643.17
Unit price: $4,643.17
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Material series
WD Series
Synthetical description
WALL BOX 2 SOCKETS WITH LOCK
Material
ENGINEERING PLASTIC
Rated current
63A
Rated voltage
400V
Working frequency
50/60Hz
Poles
3P+N+E
Protection degree IP
IP54
Working temperature
-30°C/+50°C
GLOW WIRE
GW 650°C
Protection degree IK
IK10
Colour
GREY
Saline solution
Resistant
UV protection
UV resistant
Mounting version
SURFACE MOUNTING
Dimensions
360x780x264mm

Version
SOLO
EV standard
Type 2 3P+N+E 32A 400V~ 22kW
HMI (Human-Machine Interfaces)
LCD 2x20 char
EV functions
charge in mode 3 with pwm circuit pilot
predisposition for serial communication
protection against direct contact Safety Child Shutters
charge managing in case of power outage
identification of connected cord-set size
protection against overcurrents and electric shock
managing of lid locking and latching system
working in mode stand-alone free
current consuption metering
EV equipment
2 lighting bars with RGB led
1 power supply 24Vdc 36W
1 fuse holder 1P+N gG 4A
1 backup battery
2 DC Leakage detectors
2 control cards
2 lcd display 2x20 rows backlight
2 stop charge push-buttons (mode free)
2 modular contactors 4P 40A 24Vdc
1 terminal strip 1x35mm²
2 circuit breakers 3P+N C40 30mA ist. A
2 current transformers
1 main switch 4P 80A

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
204.WD23P-T2T2 204.WD23P-T2T2 EN_204.WD23P-T2T2.pdf 43 Kbytes 204.WD23P-T2T2 204.WD23P-T2T2 EN_204.WD23P-T2T2.pdf
