> SCAME>204.WD23E-T2T2 SCAME WALL BOX 2 SOCKETS WITH LOCK
Previous Product Next Product

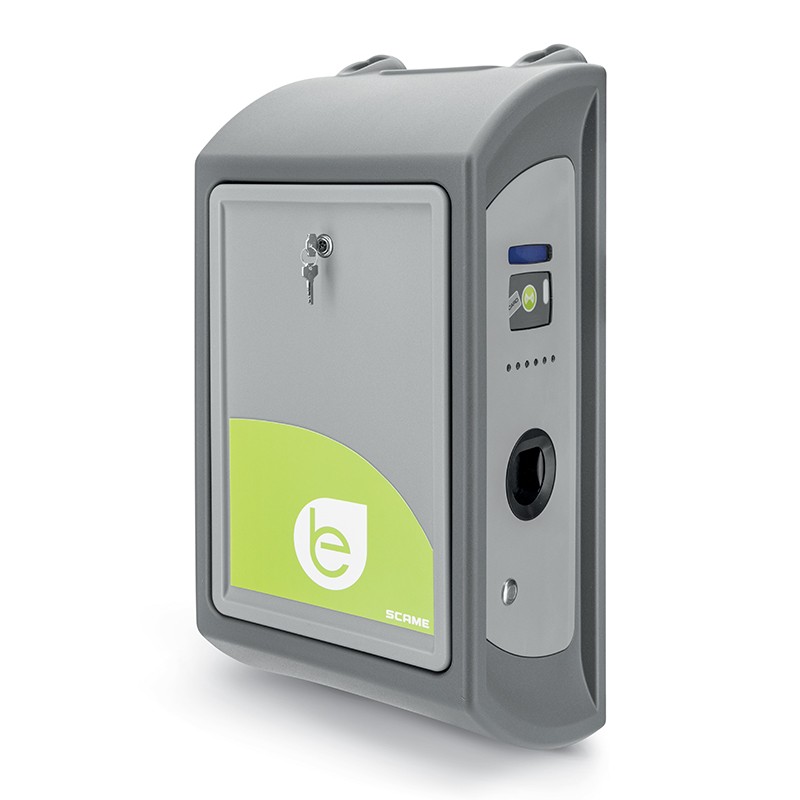

204.WD23E-T2T2 SCAME WALL BOX 2 SOCKETS WITH LOCK View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

204.WD23E-T2T2 SCAME WALL BOX 2 SOCKETS WITH LOCK

204.WD23E-T2T2

SCAME

WALL BOX 2 SOCKETS WITH LOCK

WALL BOX 2 OUTLETS, Type 2 3P+N+T 32A 400V~ 22kW 63A 400V 3P+N+T-IP54 IK10 With RFID identification

Type 2 3P+N+E 32A 400V~ 22kW 63A 400V 3P+N+E IP54 IK10

More details


Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Material series
WD Series
Synthetical description
WALL BOX 2 SOCKETS WITH LOCK
Material
ENGINEERING PLASTIC
Rated current
63A
Rated voltage
400V
Working frequency
50/60Hz
Poles
3P+N+E
Protection degree IP
IP54
Working temperature
-30°C/+50°C
GLOW WIRE
GW 650°C
Protection degree IK
IK10
Colour
GREY
Saline solution
Resistant
UV protection
UV resistant
Mounting version
SURFACE MOUNTING
Dimensions
360x780x264mm

Version
SOLO
EV standard
Type 2 3P+N+E 32A 400V~ 22kW
HMI (Human-Machine Interfaces)
LCD 2x20 char
EV functions
charge in mode 3 with pwm circuit pilot
predisposition for serial communication
protection against direct contact Safety Child Shutters
charge managing in case of power outage
identification of connected cord-set size
managing of lid locking and latching system
working in mode stand-alone free
current consuption metering
EV equipment
2 lighting bars with RGB led
1 backup battery
2 DC Leakage detectors
2 control cards
2 lcd display 2x20 rows backlight
2 stop charge push-buttons (mode free)
2 fuse holders 1P+N gG 4A
1 terminal strip 10x35mm²
2 modular contactors 4P 40A 24Vdc
2 current transformers
2 power supplies 24Vdc 36W
EV excluded
upstream protections (by the installer):
2 circuit breakers 3P+N C40 30mA ist. A

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
204.WD23E-T2T2 204.WD23E-T2T2 EN_204.WD23E-T2T2.pdf 43 Kbytes 204.WD23E-T2T2 204.WD23E-T2T2 EN_204.WD23E-T2T2.pdf
