> SCAME>204.WD22B-T23A SCAME WALL BOX 2 SOCKETS WITH LOCK
Previous Product Next Product

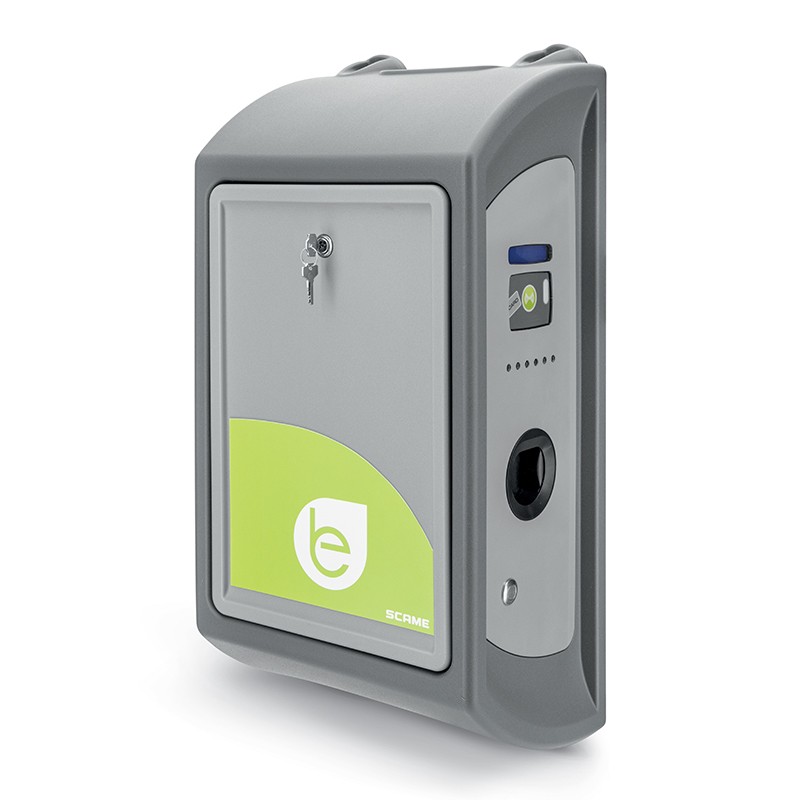

204.WD22B-T23A SCAME WALL BOX 2 SOCKETS WITH LOCK View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

204.WD22B-T23A SCAME WALL BOX 2 SOCKETS WITH LOCK

204.WD22B-T23A

SCAME

WALL BOX 2 SOCKETS WITH LOCK

WALL BOX 2 SOCKETS TYPE 2 22kW + 3A 3.5kW

Type 2 3P+N+E 32A 400V~ 22kW Type 3A 1P+N+E 16A 230V~ 3,7kW 50A 400V 3P+N+E IP54 IK10

More details


Industrial socket/plug applications > Charging device E-Mobility

Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
WD Series
Synthetical description
WALL BOX 2 SOCKETS WITH LOCK
Material
ENGINEERING PLASTIC
Rated current
50A
Rated voltage
400V
Working frequency
50/60Hz
Poles
3P+N+E
Protection degree IP
IP54
Working temperature
-30°C/+50°C
GLOW WIRE
GW 650°C
Protection degree IK
IK10
Colour
GREY
Saline solution
Resistant
UV protection
UV resistant
Mounting version
SURFACE MOUNTING
Dimensions
360x780x264mm

Version
PRO
EV standard
Type 2 3P+N+E 32A 400V~ 22kW
Type 3A 1P+N+E 16A 230V~ 3,7kW
HMI (Human-Machine Interfaces)
LCD 2x20 char
User authentication
RFID authentication
Connectivity
None
EV functions
charge in mode 3 with pwm circuit pilot
predisposition for serial communication
energy metering and current consumption
identification of authorized user
working in mode stand-alone free or personal
protection against direct contact Safety Child Shutters
charge managing in case of power outage
identification of connected cord-set size
protection against overcurrents and electric shock
managing of lid locking and latching system
EV equipment
2 lighting bars with RGB led
1 power supply 24Vdc 36W
1 fuse holder 1P+N gG 4A
1 backup battery
1 modular contactor 4P 40A 24Vdc
2 DC Leakage detectors
2 control cards
2 stop charge push-buttons (mode free)
1 digital energy meter 1P+N 40A
2 lcd display 2x20 rows backlight
2 readers RFID 13,56MHz
1 digital energy meter 3P+N 80A
1 circuit breaker 3P+N C40 30mA ist. A
1 modular contactor 2P 25A 24Vdc
1 terminal strip 1x35mm²
1 circuit breaker 1P+N D20 30mA ist. A
1 main switch 4P 80A
EV specifications
Charging station for electric vehicles with wall installation (or on a tubular support) made of grey technopolymer and steel sheet resistant to impact and UV rays, IP54 degree of protection, size 360 x 793 x 264 mm.Container with RGB LED strip with three colours indicating the station's operating status.<br>Column equipped with a type 2 anti-vandal socket and a type 3A socket with protective shutters compliant with the CEI EN 62196-2 standard and suitable for charging in mode 3 in compliance with the CEI EN 61851-1 standard (IPXXD degree of protection is guaranteed without further disconnecting devices).<br>Sockets equipped with plug locking system and interlocking of the cover to prevent tampering and unauthorised access.<br>Maximum deliverable current 32 A three-phase (22 kW) with identification of the connected cable size for the type 2 socket and 16 A single-phase (3.5 kW) for the type 3A socket.<br>Station complete with automatic and differential protection devices and digital meter for the measurement of the energy delivered and the control of the absorbed current.<br>LCD display for messages and managing diagnostics with the possibility of changing the language through a simple button.<br>RFID reader for user recognition and management of the charge. Operation in FREE or PERSONAL stand-alone mode.<br>STOP button to end the charge and allow plug extraction (FREE mode).<br>Set up for external 24 V DC emergency power supply system to guarantee continuity of service in case of main AC power failure.<br>Set up for communication over RS485 serial line (NET mode with management via server).<br>Operating temperature -25°C to +40°C, IK10 impact resistance, casing with IP54 degree of protection.<br>Possibility of accessorising the station with tubular support and galvanised steel plate.<br>Compliant with CEI EN 61851-1, CEI EN 62196-2, CEI EN 61439-7, CEI EN 60304-7-722 standards and complete with CE marking.<br>

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
204.WD22B-T23A 204.WD22B-T23A EN_204.WD22B-T23A.pdf 44 Kbytes 204.WD22B-T23A 204.WD22B-T23A EN_204.WD22B-T23A.pdf
