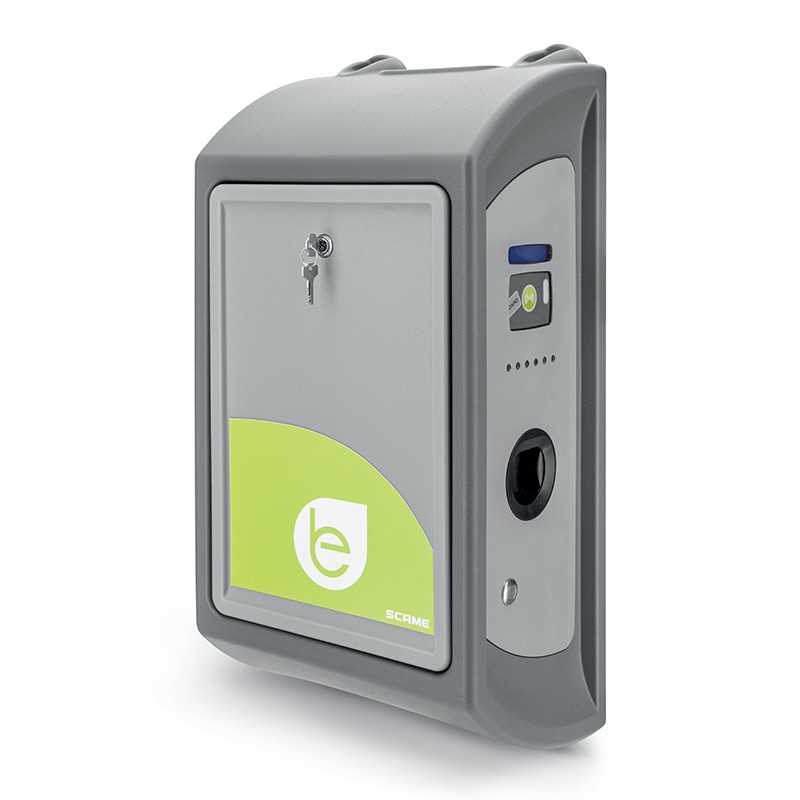

SCAME 204.WD21B-T2T2EV 204.WD21B-T2T2EV - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

204.WD21B-T2T2EV SCAME WALL BOX 2 SOCKETS WITH LOCK TIPO 2 7kW

Reference: 204.WD21B-T2T2EV

Manufacturer: SCAME

Description:

WALL BOX 2 SOCKETS WITH LOCK TIPO 2 7kW
WALL BOX 2 JACKS Type 2 1P+N+T 32A 230V~ to 7.4 kW 32A 400V 3P+N+T-IP54 IK10 With RFID identification
Type 2 1P+N+E 32A 230V~ 7,4kW 32A 400V 3P+N+E IP54 IK10

Categories:

  • SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Commercial Series
WD Series
Synthetical description
WALL BOX 2 SOCKETS WITH LOCK
Material
ENGINEERING PLASTIC
Rated current
32A
Rated voltage
400V
Working frequency
50/60Hz
Poles
3P+N+E
Protection degree IP
IP54
Working temperature
-25°C/+40°C
Protection degree IK
IK10
Colour
GREY
Saline solution
Resistant
UV protection
UV resistant
Mounting version
SURFACE MOUNTING
Dimensions
360x780x264mm

Version
PRO
EV standard
Type 2 1P+N+E 32A 230V~ 7,4kW
HMI (Human-Machine Interfaces)
LCD 2x20 char
User authentication
RFID authentication
EV functions
charge in mode 3 with pwm circuit pilot
energy metering and current consumption
identification of authorized user
protection against direct contact Safety Child Shutters
working in mode stand-alone free or personal
identification of connected cord-set size
protection against overcurrents and electric shock
managing of lid locking and latching system
power contactor aperture monitoring
EV equipment
2 lighting bars with RGB led
2 control cards
2 lcd display 2x20 rows backlight
2 readers RFID 13,56MHz
2 stop charge push-buttons (mode free)
1 main switch 4P 40A
2 digital energy meters 1P+N 45A
1 terminal strip 1x35mm²
2 circuit breakers 1P+N C40 30mA ist. A
2 shunt trip releases 24Vdc
2 couples of service led
In accordance with IEC 61851-1 ed.2
2 industrial contactors 2P 32A 24Vdc
2 fuse holders 1P+N gG 4A
2 power supplies 24Vdc 36W
EV excluded
emergency line 24Vdc (optional)
