> SCAME>204.WD13M-T2 SCAME WALL BOX 1 SOCKET WITH LOCK
Previous Product Next Product

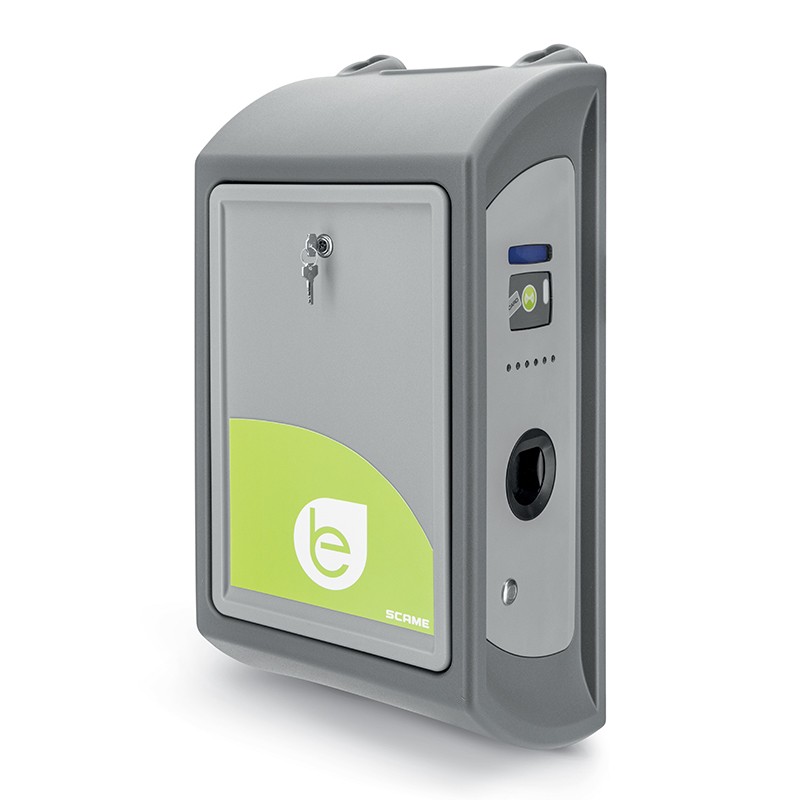

204.WD13M-T2 SCAME WALL BOX 1 SOCKET WITH LOCK View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

204.WD13M-T2 SCAME WALL BOX 1 SOCKET WITH LOCK

204.WD13M-T2

SCAME

WALL BOX 1 SOCKET WITH LOCK

WALL BOX 1 SOCKET Type 2 3P+N+T 32A 400V~ 22kW 32A 400V 3P+N+T-IP54 IK10 With RFID identification

Type 2 3P+N+E 32A 400V~ 22kW 32A 400V 3P+N+E IP54 IK10

More details


Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
WD Series
Synthetical description
WALL BOX 1 SOCKET WITH LOCK
Material
ENGINEERING PLASTIC
Rated current
32A
Rated voltage
400V
Working frequency
50/60Hz
Poles
3P+N+E
Protection degree IP
IP54
Working temperature
-30°C/+50°C
GLOW WIRE
GW 650°C
Protection degree IK
IK10
Colour
GREY
Saline solution
Resistant
UV protection
UV resistant
Mounting version
SURFACE MOUNTING
Dimensions
360x780x264mm

Version
LITE
EV standard
Type 2 3P+N+E 32A 400V~ 22kW
HMI (Human-Machine Interfaces)
LCD 2x20 char
EV functions
charge in mode 3 with pwm circuit pilot
predisposition for serial communication
energy metering and current consumption
protection against direct contact Safety Child Shutters
charge managing in case of power outage
identification of connected cord-set size
protection against overcurrents and electric shock
managing of lid locking and latching system
working in mode stand-alone free
EV equipment
1 lighting bar with RGB led
1 fuse holder 1P+N gG 4A
1 power supply 24Vdc 36W
1 DC Leakage detector
1 control card
1 stop charge push-button (mode free)
1 lcd display 2x20 rows backlight
1 backup battery
1 modular contactor 4P 40A 24Vdc
1 terminal strip 5x35mm²
1 digital energy meter 3P+N 80A
1 circuit breaker 3P+N C40 30mA ist. A

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
204.WD13M-T2 204.WD13M-T2 EN_204.WD13M-T2.pdf 43 Kbytes 204.WD13M-T2 204.WD13M-T2 EN_204.WD13M-T2.pdf
Download general catalog Download general catalog
