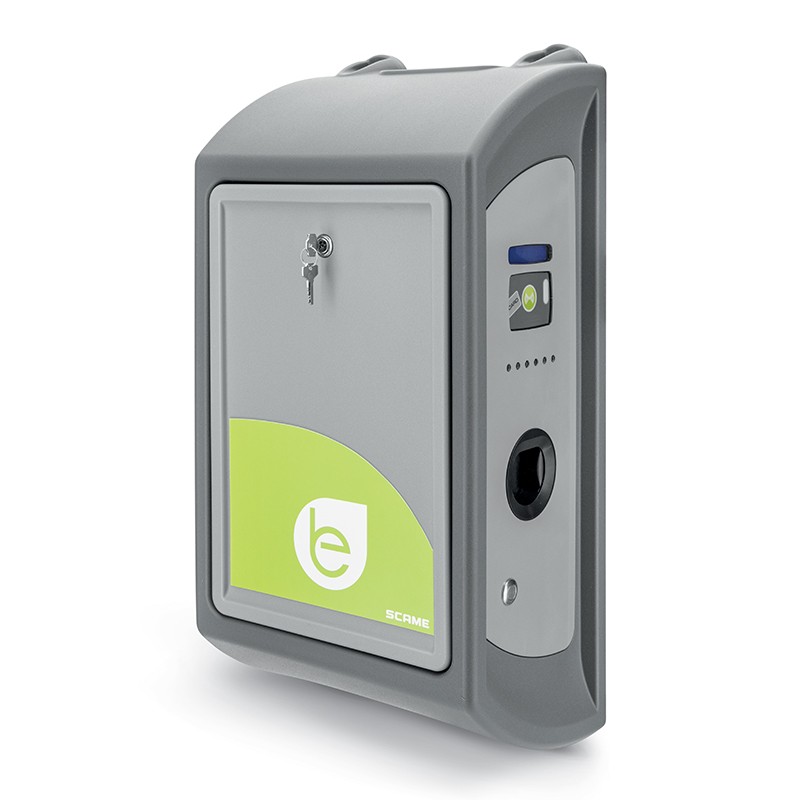

SCAME204.WD13B-T2A SCAME WALL BOX 1 SOCKET WITH LOCK
SCAME 204.WD13B-T2A 204.WD13B-T2A - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

204.WD13B-T2A SCAME WALL BOX 1 SOCKET WITH LOCK

Reference: 204.WD13B-T2A

Manufacturer: SCAME

Description:

WALL BOX 1 SOCKET WITH LOCK
WALL BOX 1 SOCKET Type 2 3P+N+T 32A 400V~ 22kW 32A 400V 3P+N+T-IP54 IK10 With RFID identification

Categories:

  • SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

Commercial series
LIBERA Series
Synthetical description
WALL BOX 1 SOCKET WITH LOCK
Material
ENGINEERING PLASTIC
EV standard
Type 2 3P+N+E 32A 400V~ 22kW
Rated current
32A
Rated voltage
400V
Working frequency
50/60Hz
Poles
3P+N+E
Protection degree IP
IP54
Working temperature
-30°C/+50°C
GLOW WIRE
GW 650°C
Protection degree IK
IK10
Colour
GREY
Mounting version
SURFACE MOUNTING
Dimensions
360x780x264mm

DATASHEET - PDF

Title
Size
Type
204.WD13B-T2A 204.WD13B-T2A EN_204.WD13B-T2A.pdf
43 Kbytes
PDF CATALOGUE SCAME EN
20 Mbytes
