SCAME204.WB16E-T2 SCAME WALL BOX 1 SOCKET TYPE 2

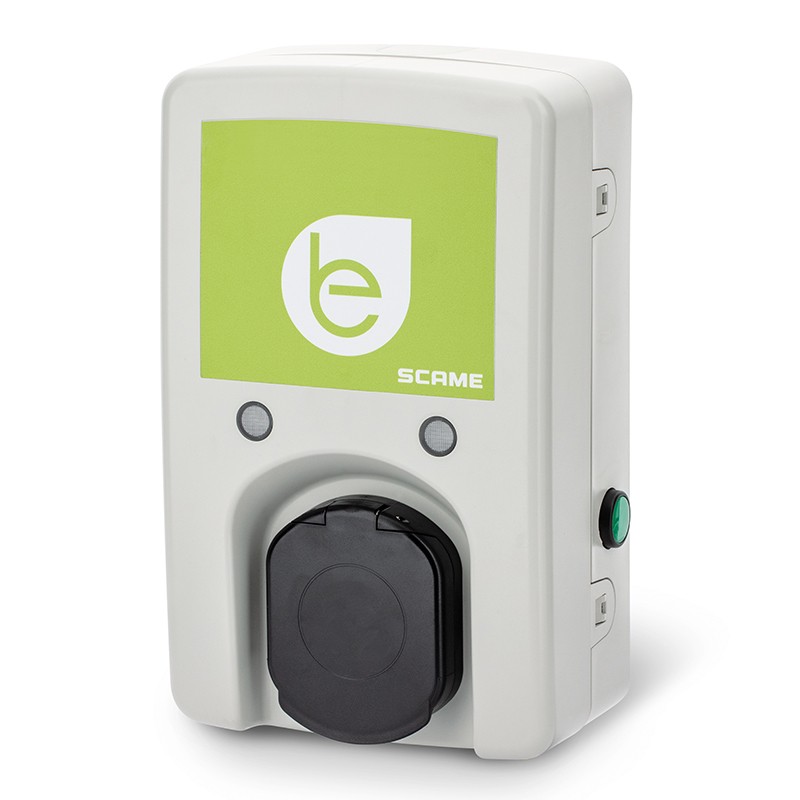

SCAME 204.WB16E-T2 204.WB16E-T2 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

204.WB16E-T2 SCAME WALL BOX 1 SOCKET TYPE 2

Reference: 204.WB16E-T2

Manufacturer: SCAME

Description:

WALL BOX 1 SOCKET TYPE 2
Type 2 3P+N+E 16A 400V~ 11kW 16A 400V 3P+N+E IP54 IK08

Categories:

  • Industrial socket/plug applications > Charging device E-Mobility
  • SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Go to successor article:205.W18-D0205.W18-D0

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Commercial Series
WB Series
Synthetical description
WALL BOX 1 SOCKET TYPE 2
Material
ENGINEERING PLASTIC
Rated current
16A
Rated voltage
400V
Working frequency
50/60Hz
Poles
3P+N+E
Protection degree IP
IP54
Working temperature
-25°C/+40°C
GLOW WIRE
GW 650°C
Protection degree IK
IK08
Colour
GREY
Saline solution
Resistant
UV protection
UV resistant
Mounting version
SURFACE MOUNTING
Dimensions
215x350x120mm

Version
SOLO
EV standard
Type 2 3P+N+E 16A 400V~ 11kW
EV functions
charge in mode 3 with pwm circuit pilot
predisposition for serial communication
protection against direct contact Safety Child Shutters
identification of connected cord-set size
managing of latching system
working in mode stand-alone free
current consuption metering
EV equipment
1 terminal strip 5x6mm²
1 power supply 24Vdc 36W
1 fuse holder 1P+N gG 4A
1 DC Leakage detector
1 control card
1 stop charge push-button (mode free)
1 current transformer
1 couple of service led
1 modular contactor 4P 25A 24Vdc
EV excluded
upstream protections (by the installer):
1 circuit breaker 3P+N C20 30mA ist. A
emergency line 24Vdc (optional)

DATASHEET - PDF

Title
Size
Type
204.WB16E-T2 204.WB16E-T2 EN_204.WB16E-T2.pdf
46 Kbytes
PDF CATALOGUE SCAME EN
20 Mbytes
