> SCAME>204.WB16D-T2 SCAME WALL BOX 1 SOCKET TYPE 2
Previous Product Next Product

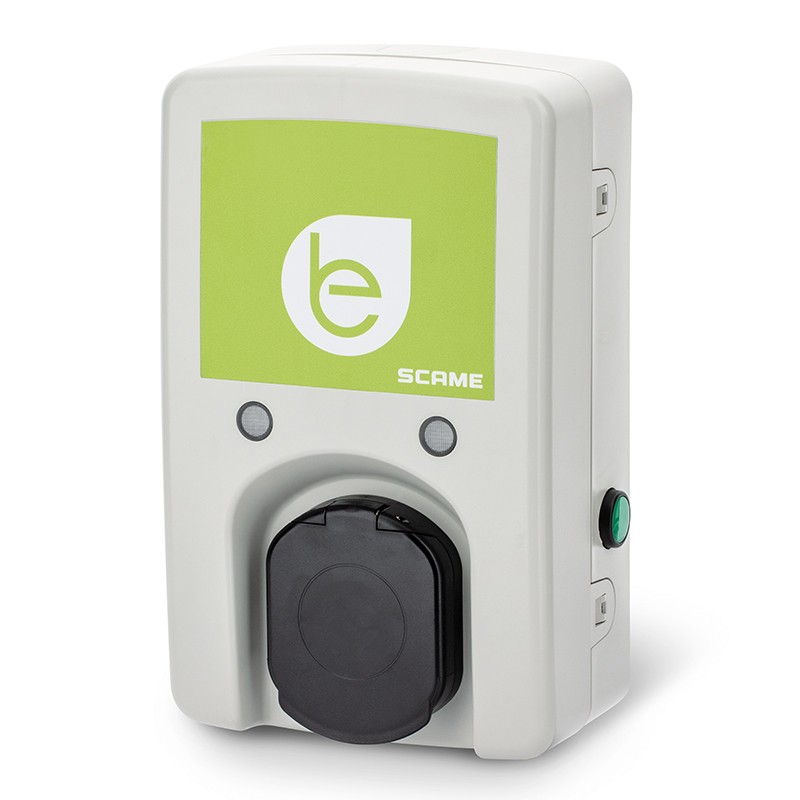

204.WB16D-T2 SCAME WALL BOX 1 SOCKET TYPE 2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

204.WB16D-T2 SCAME WALL BOX 1 SOCKET TYPE 2

204.WB16D-T2

SCAME

WALL BOX 1 SOCKET TYPE 2

WALL BOX 1 SOCKET TYPE 2 Type 2 3P+N+T 16A 400V~ 11kW 16A 400V 3P+N+T-IP54 IK08 With RFID identification

Type 2 3P+N+E 16A 400V~ 11kW 16A 400V 3P+N+E IP54 IK08

More details


Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
WB Series
Synthetical description
WALL BOX 1 SOCKET TYPE 2
Material
ENGINEERING PLASTIC
Rated current
16A
Rated voltage
400V
Working frequency
50/60Hz
Poles
3P+N+E
Protection degree IP
IP54
Working temperature
-25°C/+40°C
GLOW WIRE
GW 650°C
Protection degree IK
IK08
Colour
GREY
Saline solution
Resistant
UV protection
UV resistant
Mounting version
SURFACE MOUNTING
Dimensions
215x350x120mm

Version
BUSINESS
EV standard
Type 2 3P+N+E 16A 400V~ 11kW
HMI (Human-Machine Interfaces)
LCD 2x20 char
User authentication
RFID authentication
Connectivity
None
EV functions
charge in mode 3 with pwm circuit pilot
predisposition for serial communication
energy metering and current consumption
identification of authorized user
protection against direct contact Safety Child Shutters
working in mode stand-alone free or personal
identification of connected cord-set size
managing of latching system
EV equipment
1 terminal strip 1x6mm²
1 power supply 24Vdc 36W
1 fuse holder 1P+N gG 4A
1 DC Leakage detector
1 control card
1 stop charge push-button (mode free)
1 lcd display 2x20 rows backlight
1 reader RFID 13,56MHz
1 couple of service led
1 digital energy meter 3P+N 65A
1 modular contactor 4P 25A 24Vdc
EV excluded
upstream protections (by the installer):
1 circuit breaker 3P+N C20 30mA ist. A
emergency line 24Vdc (optional)

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
204.WB16D-T2 204.WB16D-T2 EN_204.WB16D-T2.pdf 46 Kbytes 204.WB16D-T2 204.WB16D-T2 EN_204.WB16D-T2.pdf
Download general catalog Download general catalog
