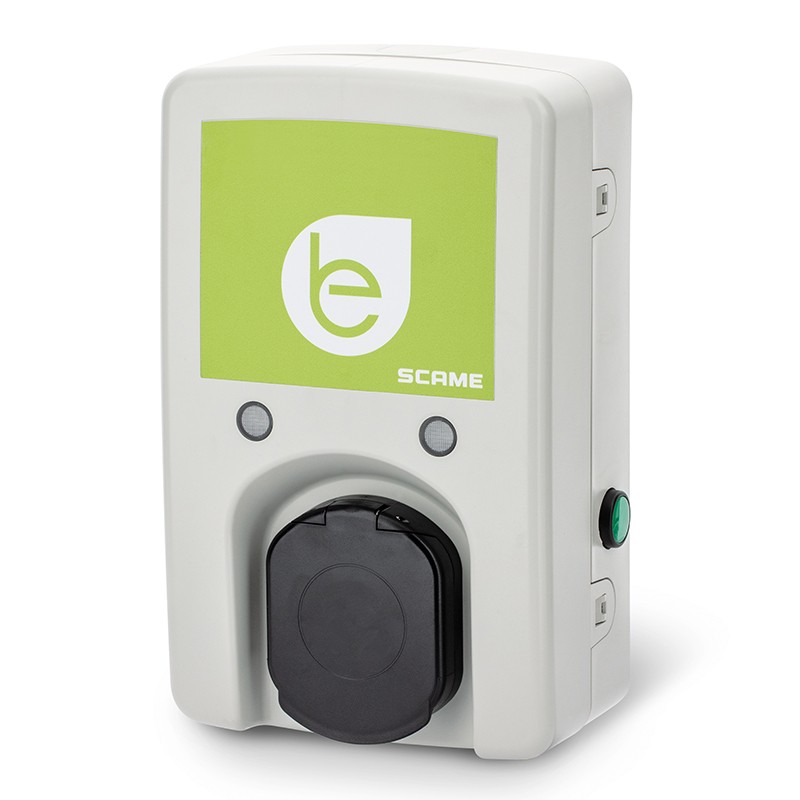

204.WB13L-T2 SCAME WALL BOX 1 SOCKET TYPE 2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

204.WB13L-T2 SCAME WALL BOX 1 SOCKET TYPE 2

204.WB13L-T2

SCAME

WALL BOX 1 SOCKET TYPE 2

WALL BOX 1 SOCKET TYPE 2 Type 2 3P+N+T 32A 400V~ 22kW 32A 400V 3P+N+T IP 54 IK08

Type 2 3P+N+E 32A 400V~ 22kW 32A 400V 3P+N+E IP54 IK08

More details


Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
WB Series
Synthetical description
WALL BOX 1 SOCKET TYPE 2
Material
ENGINEERING PLASTIC
Rated current
32A
Rated voltage
400V
Working frequency
50/60Hz
Poles
3P+N+E
Protection degree IP
IP54
Working temperature
-25°C/+40°C
GLOW WIRE
GW 650°C
Protection degree IK
IK08
Colour
GREY
Saline solution
Resistant
UV protection
UV resistant
Mounting version
SURFACE MOUNTING
Dimensions
215x350x120mm

Version
SOLO
EV standard
Type 2 3P+N+E 32A 400V~ 22kW
EV functions
charge in mode 3 with pwm circuit pilot
predisposition for serial communication
energy metering and current consumption
protection against direct contact Safety Child Shutters
identification of connected cord-set size
managing of latching system
working in mode stand-alone free
EV equipment
1 terminal strip 1x10mm²
1 power supply 24Vdc 36W
1 fuse holder 1P+N gG 4A
1 DC Leakage detector
1 control card
1 stop charge push-button (mode free)
1 modular contactor 4P 40A 24Vdc
1 couple of service led
1 digital energy meter 3P+N 65A
EV excluded
upstream protections (by the installer):
1 circuit breaker 3P+N C40 30mA ist. A
emergency line 24Vdc (optional)

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
204.WB13L-T2 204.WB13L-T2 EN_204.WB13L-T2.pdf 46 Kbytes 204.WB13L-T2 204.WB13L-T2 EN_204.WB13L-T2.pdf
Download general catalog Download general catalog
