> SCAME>204.WB11R-T2EV SCAME WALL BOX 1 SOCKET with RFID TYPE 2 3,5kW
Previous Product Next Product

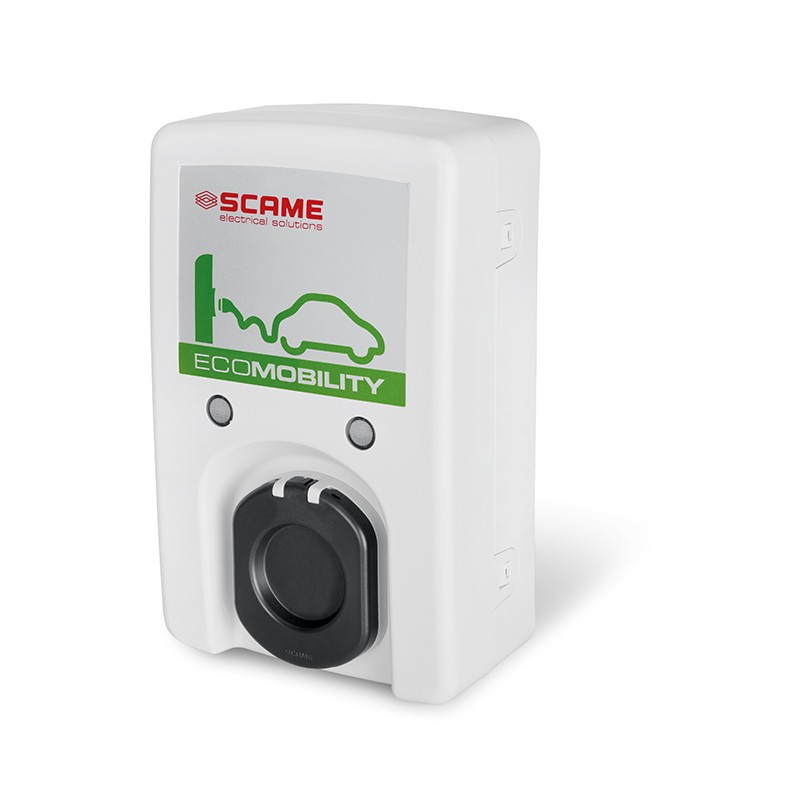

204.WB11R-T2EV SCAME WALL BOX 1 SOCKET with RFID TYPE 2 3,5kW View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

204.WB11R-T2EV SCAME WALL BOX 1 SOCKET with RFID TYPE 2 3,5kW

204.WB11R-T2EV

SCAME

WALL BOX 1 SOCKET with RFID TYPE 2 3,5kW

WALL BOX 1 SOCKET TYPE 2 IP54 16A 230V AC

Type 2 1P+N+E 16A 230V~ 3,7kW 16A 230V 1P+N+E IP54 IK08

More details


Industrial socket/plug applications > Charging device E-Mobility

Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
WB Series
Synthetical description
WALL BOX 1 SOCKET TYPE 2
Material
ENGINEERING PLASTIC
Rated current
16A
Rated voltage
230V
Working frequency
50/60Hz
Poles
1P+N+E
Protection degree IP
IP54
Working temperature
-25°C/+40°C
GLOW WIRE
GW 650°C
Protection degree IK
IK08
Colour
GREY
Saline solution
Resistant
UV protection
UV resistant
Mounting version
SURFACE MOUNTING
Dimensions
215x350x120mm

Version
BUSINESS
EV standard
Type 2 1P+N+E 16A 230V~ 3,7kW
User authentication
RFID authentication
EV functions
charge in mode 3 with pwm circuit pilot
energy metering and current consumption
identification of authorized user
protection against direct contact Safety Child Shutters
working in mode stand-alone free or personal
identification of connected cord-set size
protection against overcurrents and electric shock
power contactor aperture monitoring
managing of latching system
EV equipment
1 terminal strip 1x6mm²
1 power supply 24Vdc 36W
1 fuse holder 1P+N gG 4A
1 control card
1 stop charge push-button (mode free)
1 reader RFID 13,56MHz
1 shunt trip release 24Vdc
1 couple of service led
1 circuit breaker 1P+N D20 30mA ist. A
1 digital energy meter 1P+N 45A
1 industrial contactor 2P 16A 24Vdc
EV excluded
emergency line 24Vdc (optional)
upstream protections (by the installer):
1 circuit breaker RCD Type B

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
204.WB11R-T2EV 204.WB11R-T2EV EN_204.WB11R-T2EV.pdf 48 Kbytes 204.WB11R-T2EV 204.WB11R-T2EV EN_204.WB11R-T2EV.pdf
Download general catalog Download general catalog
