> SCAME>204.WB11F-T23 SCAME WALL BOX 1 SOCKET TYPE 2
Previous Product Next Product

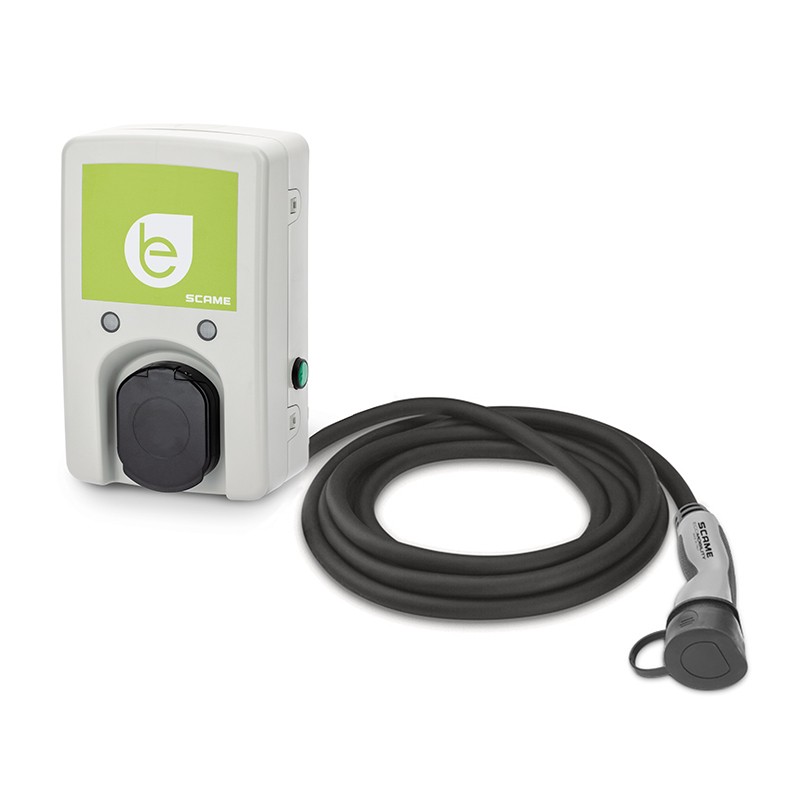

204.WB11F-T23 SCAME WALL BOX 1 SOCKET TYPE 2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

204.WB11F-T23 SCAME WALL BOX 1 SOCKET TYPE 2

204.WB11F-T23

SCAME

WALL BOX 1 SOCKET TYPE 2

WALL BOX 1 SOCKET TYPE 2 Type 2 1P+N+T 32A 230V~ to 7.4 kW 32A 230V 1P+N+T-IP54 IK08 With RFID identification

Type 2 1P+N+E 32A 230V~ 7,4kW 32A 230V 1P+N+E IP54 IK08 Type 2 4m

More details


Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
WB Series
Synthetical description
WALL BOX 1 SOCKET TYPE 2
Material
ENGINEERING PLASTIC
Cable length
4m
Cable section
3G6+1x0,5mm²
Rated current
32A
Rated voltage
230V
Working frequency
50/60Hz
Poles
1P+N+E
Protection degree IP
IP54
Working temperature
-25°C/+40°C
GLOW WIRE
GW 650°C
Protection degree IK
IK08
Colour
GREY
Saline solution
Resistant
UV protection
UV resistant
Mounting version
SURFACE MOUNTING
Dimensions
215x350x120mm

Version
BUSINESS
EV standard
Type 2 1P+N+E 32A 230V~ 7,4kW
With integrated cable
Type 2
HMI (Human-Machine Interfaces)
LCD 2x20 char
User authentication
RFID authentication
EV functions
charge in mode 3 with pwm circuit pilot
predisposition for serial communication
identification of authorized user
working in mode stand-alone free or personal
power contactor aperture monitoring
current consuption metering
EV equipment
1 terminal strip 3x6mm²
1 power supply 24Vdc 36W
1 fuse holder 1P+N gG 4A
1 DC Leakage detector
1 control card
1 stop charge push-button (mode free)
1 lcd display 2x20 rows backlight
1 reader RFID 13,56MHz
1 current transformer
1 couple of service led
1 cable wrapping support
1 cable 3G6+1x0,5mm² 4m
1 industrial contactor 2P 32A 24Vdc
EV excluded
upstream protections (by the installer):
1 circuit breaker 1P+N C40 30mA ist. A
1 shunt trip release 24Vdc
emergency line 24Vdc (optional)
